3C 380V Sterilizing Water Filling Capping Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 8000 Kg |
|---|---|---|---|
| Certification: | CE,ISO,3C | Power(w): | 4000 |
| Application: | Chemical, Daily Chemical，bath Foam And Shampoo | Export Markets: | Southeast Asia,the Middle East,Europe And America,Global |
| Speed: | 12000 Bph/h | ||
| High Light: | Sterilizing Water Filling Capping Machine,3C 380V Filling Capping Machine,Sterilizing Water Filling And Capping Machine |
||
Product Description
Automatic line for sterilizing water filling, capping and boxing produced in China. Filling and capping machine
Shipping package: wooden box
Main technical parameters (for reference)
| No. | Item | Description |
| 1 | Applicable bottle | Based on requirement |
| 2 | Filling accuracy | ±3‰ |
| 3 | Dimensions | Based on actual design |
| 4 | Weight | 3,000kg |
| 5 | Number of filling heads | Customized, from 4-head to 24-head |
| 6 | Production capacity | Customized, from 40bpm to 150bpm |
| 7 | Air source | 0.5Mpa-0.6Mpa clean and stable air source |
| 8 | Power | 380V;50Hz(based on customer requirement) |
| 9 | Running noise | ﹤80dB(A) |
| 10 | Machine material |
Frame: carbon steel, stainless steel frame; Contact material, filling area, liquid storage tank: 316L stainless steel; Filling head: 316L stainless steel; Material pipe: sanitary grade steel hose; Electrical box: SUS304 stainless steel Connected and fixed mechanical parts: SUS304 stainless steel; control valve: 316L stainless steel; Screen door: stainless steel edging, plexiglass |
Automatic capping machine of 84 disinfectant is the best solution for u.
Cover type: round cover.
Capacity:4000-12000bp/h.

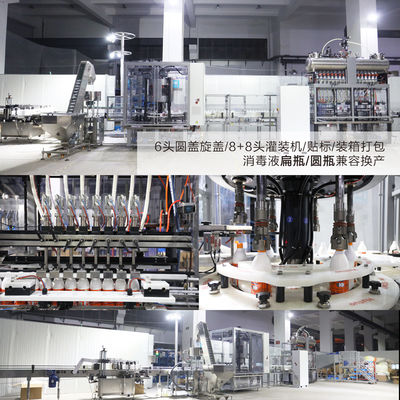

This solution includes:
1 8+8-heads filling machine

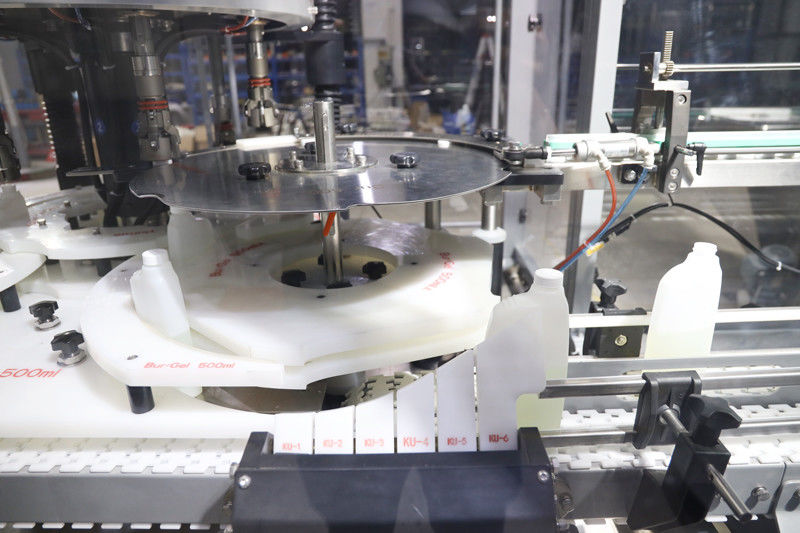

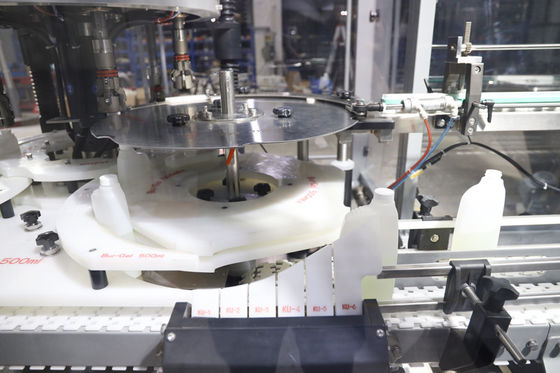

2 6-heads capping machine

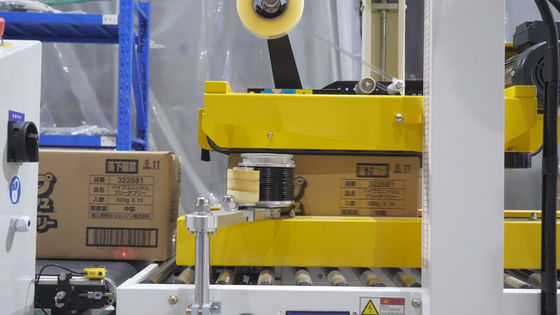

3 Automatic filming machine
4 Automatic packing machine
Compatible with flat and round bottles, easy to change production.
Of course, we can also customize solutions according to your capacity requirements.
