Multifunctional Liquid Bottle Capping Machine For Lotion Pump Spray Trigger Dispenser
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE,ISO9001,3C |
|---|---|---|---|
| Power(w): | 4000 | Application: | Chemical, Daily Chemical，food，bath Foam And Shampoo |
| Production Capacity: | 80bpm | Export Markets: | Europe And America,Global |
| Cap Suitable: | Spray Trigger | ||
| High Light: | Multifunctional Bottle Capping Machine,Trigger Lotion Capping Machine,Multifunctional Lotion Capping Machine |
||
Product Description

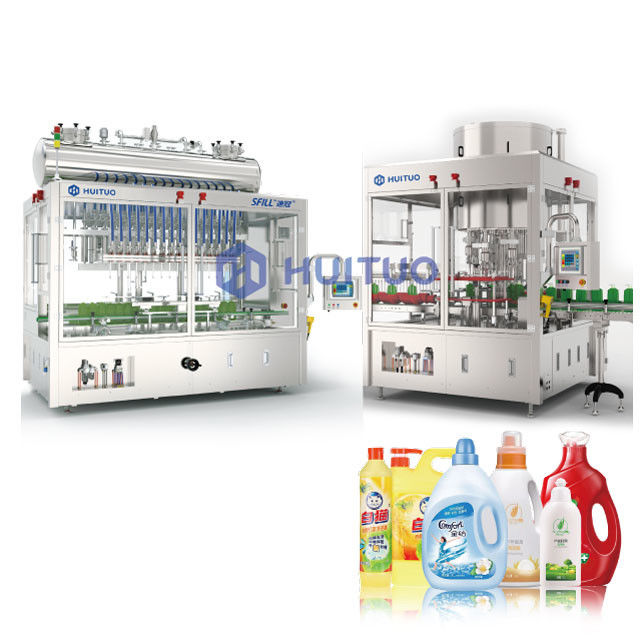

Multifunctional liquid bottle filling and capping machine for lotion pump and spray trigger dispenser
Huituo filling and capping machine can be widely used for filling a variety of bottle types and cap types. Simple adjustment and replacement of changeover parts are required, when changing production, not only saving costs, but also greatly improving the efficiency and productivity of the entire line.
| No. | Item | Description |
| 01 | Dimension | 2000mm*1600mm*2600mm |
| 02 | Stand-alone pass rate | 99% |
| 03 |
Capping machine Torque control |
0-3N*M Two options: Permanent magnet clutch or servo motor |
| 04 |
Filling machine Filling method |
Three options available: Volumetric piston; Flow meter ( KROHNE/E+H); Self-flow gravity |
| 05 | Speed |
Customized based on requirement 20-300bpm |
| 06 | Voltage | 220VAC~380VAC, 50Hz-60Hz |
| 07 | Air source | 0.6Mpa clean and stable air source |
| 08 | Noise | ≦80 decibels |
| 09 | Weight | About 3,000kg |
| 10 |
Capping machine Material |
Frame: carbon steel outsourcing stainless steel frame; Capping head contacting with cap: polyurethane (PU) ; Screen door: stainless steel edging, plexiglass; Electrical box: stainless steel; Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |
| 11 |
Filling machine Material |
Frame: carbon steel, stainless steel frame; Contact with material: 316L stainless steel; Filling head: 316L stainless steel; Material pipe: sanitary grade steel hose; Connected and fixed mechanical parts: SUS304 stainless steel; control valve: 316L stainless steel; Screen door: stainless steel edging, plexiglass |
| 12 | Electrical components |
PLC:Siemens Touch screen: Siemens Servo: Siemens Breaker: Siemens Sensor: IFM/LEUZE Button: Schmeral Conveyor motor: SEW (Optional) |
