Automatic Rotary Bottle Filling Capping Machine For Personal Care Flip Top
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE,ISO9001,3C |
|---|---|---|---|
| Power(w): | 4000 | Application: | Chemical, Daily Chemical，food，bath Foam And Shampoo |
| Production Capacity: | 80bpm | Export Markets: | Europe And America,Global |
| Cap Suitable: | Pull-push Cap | ||
| Highlight: | Automatic Rotary Bottle Filling Capping Machine,80bpm Flip Top Filling Capping Machine |
||
Product Description

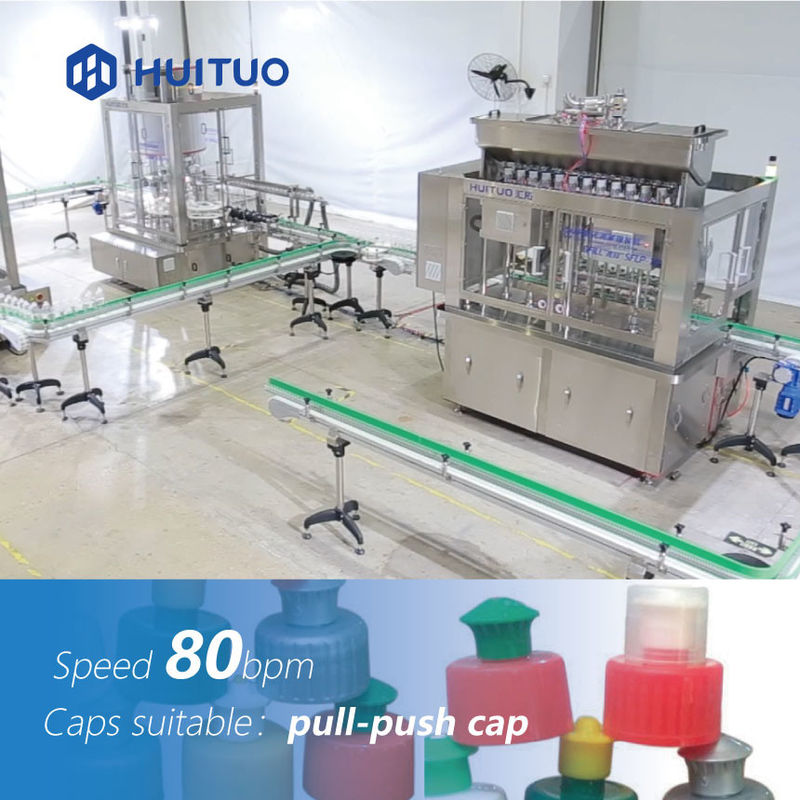

Automatic rotary bottle filling capping machine for personal care flip top, pull-push cap closure
Huituo filling and capping machine features stable, automatic and easy operation, suitable for personal care, cosmetics, food and medical industries. One machine can deal with different types of closures.
The filling machine is mainly composed of control system, conveying device, sensor detection, feeding device, storage tank, liquid level control device, filling device, bottle-clamping device and bottle stopper etc.
The capping machine is composed of several main parts, including bottle/cap feeding + automatic cap elevator and unscrambler+ inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control etc.
Main parameters
| No. | Item | Description |
| 01 | Dimension | 2000mm*1600mm*2600mm |
| 02 | Stand-alone pass rate | 99% |
| 03 |
Capping machine Torque control |
0-3N*M Two options: Permanent magnet clutch or servo motor |
| 04 |
Filling machine Filling method |
Volumetric piston; Flow meter ( KROHNE/E+H); Self-flow gravity |
| 05 | Speed |
Customized based on requirement 20-300bpm |
| 06 | Voltage | 220VAC~380VAC, 50Hz-60Hz |
| 07 | Air source | 0.6Mpa clean and stable air source |
| 08 | Noise | ≦80 decibels |
| 09 | Weight | About 3,000kg |
| 10 |
Capping machine Material |
Frame: carbon steel outsourcing stainless steel frame; Capping head contacting with cap: polyurethane (PU) ; Screen door: stainless steel edging, plexiglass; Electrical box: stainless steel; Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |
