SS316L Head Filling Capping Machine 4000W For Capsule
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 4000-8000 Kg |
|---|---|---|---|
| Certification: | CE,ISO,3C | Power(w): | 4000 |
| Application: | Chemical, Daily Chemical，bath Foam And Shampoo | Export Markets: | Southeast Asia,the Middle East,Europe And America,Global |
| Speed: | 12000 Bph/h | ||
| High Light: | SS316L Head Filling Capping Machine,Capsule Filling Capping Machine,4000w filler capper machine |
||
Product Description

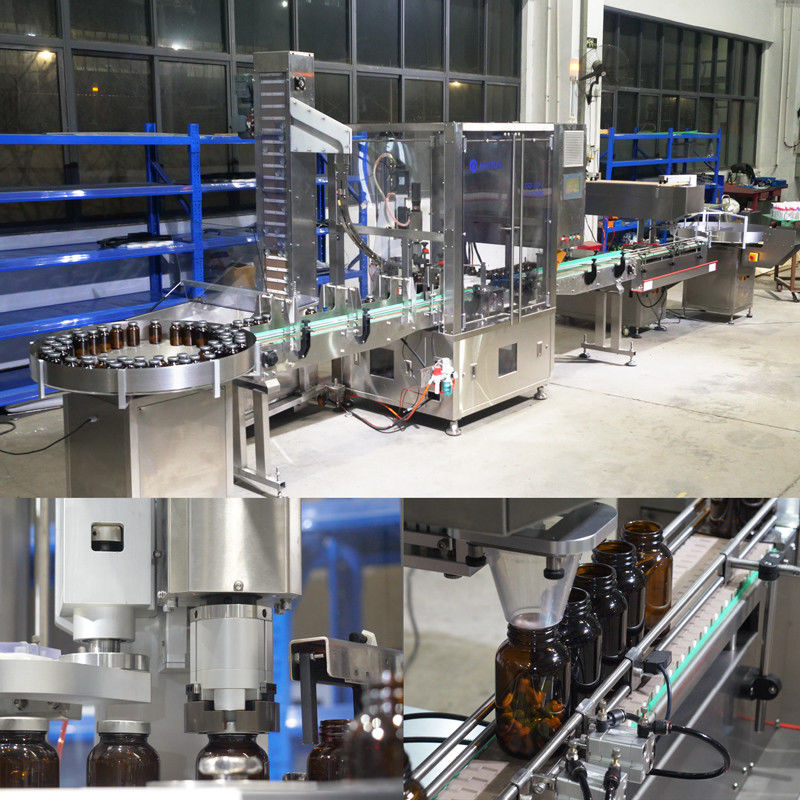

Automatic bottle filling capping machine for pill capsule
Features:
1.Huituo automatic piston filling machine is mainly composed of control system, conveying device, sensor detection, feeding device, storage tank, liquid level sensor, filling device, bottle-clamping device and bottle stopper etc.
2. The electrical control part is composed of PLC and frequency converter, which features high integration, strong control ability and reliable operation. The user friendly makes the operation of the filling machine more reliable and convenient. Photoelectric sensors use advanced sensing components to make the machine's electromechanical integration a perfect performance.
3. Huituo filling machine can be widely used for filling a variety of bottles and filling materials, such as the body lotion, shampoo, hand sanitizer and glass/toilet cleaner etc. Simple adjustment and replacement of changeover parts not only saves costs, but also greatly improves the efficiency and productivity of the entire line.
Servo motor(Optional):
Huituo filling machine can be designed based on your requirements and budget. The full servo filling machine with higher filling accuracy and easier adjustment is well received by many users.
Main technical parameters (for reference)
| No. | Item | Description |
| 1 | Applicable bottle | Based on requirement |
| 2 | Filling accuracy | ±3‰ |
| 3 | Dimensions | Based on actual design |
| 4 | Weight | 3,000kg |
| 5 | Number of filling heads | Customized, from 4-head to 24-head |
| 6 | Production capacity | Customized, from 40bpm to 150bpm |
| 7 | Air source | 0.5Mpa-0.6Mpa clean and stable air source |
| 8 | Power | 380V;50Hz(based on customer requirement) |
| 9 | Running noise | ﹤80dB(A) |
| 10 | Machine material |
Frame: carbon steel, stainless steel frame; Contact material, filling area, liquid storage tank: 316L stainless steel; Filling head: 316L stainless steel; Material pipe: sanitary grade steel hose; Electrical box: SUS304 stainless steel Connected and fixed mechanical parts: SUS304 stainless steel; control valve: 316L stainless steel; Screen door: stainless steel edging, plexiglass |
Automatic capping machine of pill capsule is the best solution for u.
Cover type: round cover.
Capacity:12000bp/h.
This solution includes:
1 1-head round capping machine
Of course, we can also customize solutions according to your capacity requirements.
