1500W Strong Acid And Alkali Liquid Filling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Packaging Type: | Bottles | Packaging Material: | Glass, Metal, Plastic |
|---|---|---|---|
| Type: | Filling Machine | Condition: | New |
| Application: | Beverage, Chemical, Food, Medical | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | AC 220V ;50Hz Or 380V; 50Hz |
| Power: | 1.5kw | Dimension(L*W*H): | 2000mmx1200mmx2300mm |
| Weight: | 650Kg | Port: | Shanghai China |
| High Light: | anticorrosive liquid filling machine,1.5kw bottle filler machine,650kg bottle filling equipment |
||
Product Description

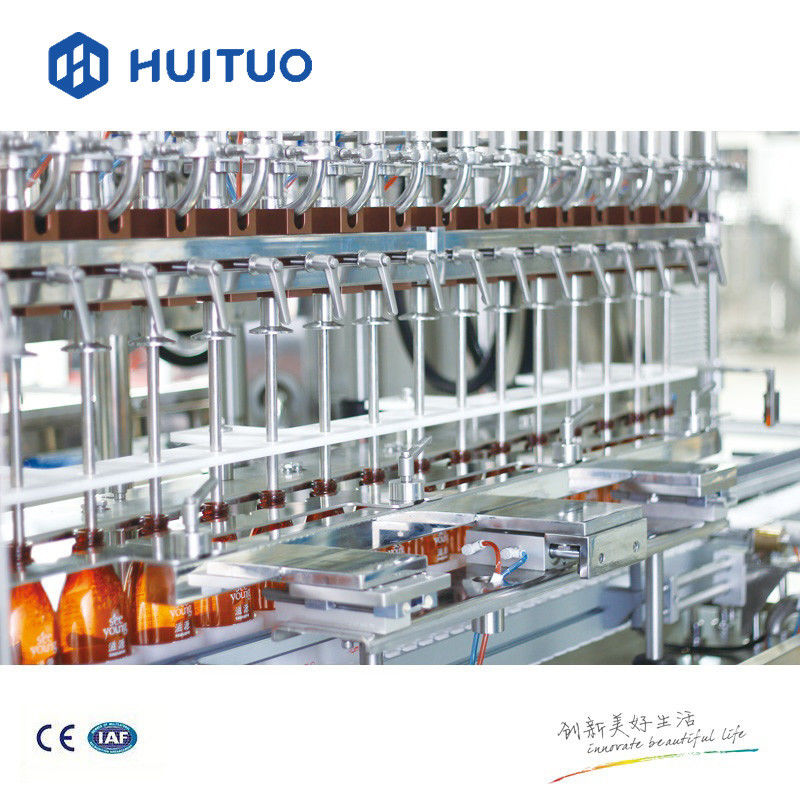

FLN12S Non metal filler filling machine for corrosive liquid
Major characteristics:
This non-metal filling machine specially designed for strong acid and alkali product,such as: hydrochloric acid products,bleach.
(1) PLC controlled ,friendly touch screen control.
(2) Famous brand electrical and pneumatic components used to guarantee machines quality and long lfie service time.
(3) Vacuum suck back for dripping can be special designed for foamy product.
(4) All wetted parts are made of non-metal materials,which anti-foamy.
(5) Not only whole filling heads can be adjusted,but each filling head can be fine-adjusted respectively.
(6) Bottle inlet counting,quantative filling,bottle outlet counting ,and serious motions can be done automatically.
(7) Simple structure,easy operation, Low noise ,reliable running, accurate filling.
Technical parameter:
|
NO. |
Items |
Performance |
|
01 |
Power Supply |
AC 220V ;50Hz or 380V; 50Hz |
|
02 |
Power |
1.5Kw |
|
03 |
Suitable containers |
Container mouth diameter: ≥Φ18mm |
|
Container height:100mm-300mm |
||
|
Container diameter:30mm-100mm |
||
|
04 |
Number of filling nozzles |
12(may customized) |
|
05 |
Productivity |
≤6000bottles/hour (Take 100ml water as test) |
|
06 |
Pneumatic (air -operated) source |
0.33-0.50 Mpa clean and Stable compressed air |
|
07 |
Material density: |
0.6-1.3 |
|
08 |
Machine weight |
650Kg |
|
09 |
Dimension |
2000mm×1200mm×2300mm |
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic capping machine?
Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the longer delivery time.
