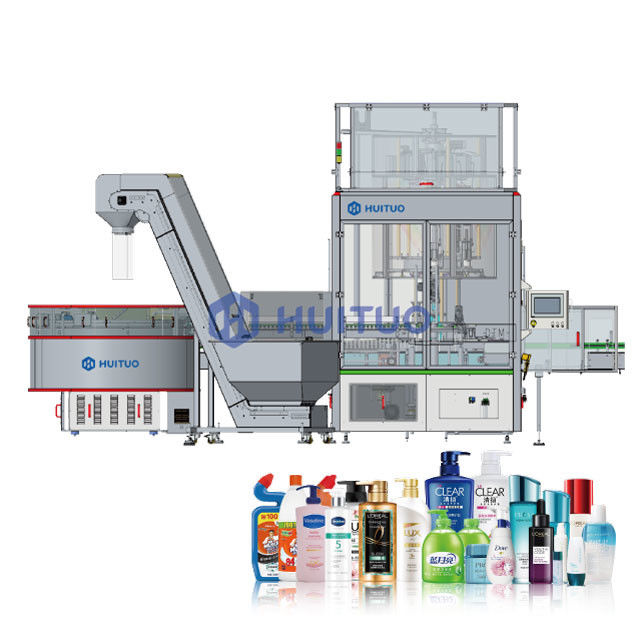

Automatic high speed rotary servo capping machines capper for bottles with trigger pump
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE, ISO |
| Model Number: | SPM-12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 45-90 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 10set/month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE, ISO9001 |
|---|---|---|---|
| Application: | Chemical, Cosmetics, Food And Medical | Production Capacity: | 40-200bpm(Customized) |
| Export Markets: | Europe And America, Global | Cap Suitable: | Lotion Pump/spray Trigger/Flip-top/disc Top |
Product Description
Servo capping machine
Highlight:
1. Wide application
Able to deal with press-on or screw-on caps and spray, dispenser pumps and trigger and suitable for different types of bottles, whether cylinder, flat or irregular.
2. Highly customized
Customized design and manufacture based on customer requirements.
3. Performance guaranteed
We are always working to modernize and simplify our designs giving our customers a competitive edge with the most efficient, technologically advanced packaging equipment.
Details Images
1. Working principle: continuous rotary
2. Suitable bottles: cylinder, flat, and irregular shape bottles
3. Suitable caps: regular pump, spray pump, foam pump, pull-push, flip-top, disc-top, Yorker and so on.
4. Speed: 200bpm for pumps and 300bpm for screw-on caps
5. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch
6. Changeover parts in modular design, within15min
7. Capping efficiency 98%, and pass rate 99.9%;
4. Speed: 200bpm for pumps and 300bpm for screw-on caps
5. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch
6. Changeover parts in modular design, within15min
7. Capping efficiency 98%, and pass rate 99.9%;
8. Easy connection to front filling machine and later labelling machine
Cap-feeding by servo motor drived chain
Huituo SPI servo capper adopts servo motor for cap-feeding chain, which not only reducing noise, but also avoid cap-stuck.
Bottle feeding by profiled screw rod
The screw drive follows the main drive, whoes angle can be set via touch screen to make it match with the starwheel. There is a sensor at the bottle-in screw, no bottle, no capping and alarm when bottle-stuck.
Cap-dividing
The cap divider is customized by the cap shape and different diameters would require changeover, but only the parts contacting cap needs to be changed.
Servo capping
Each capping head is controlled by one servo motor. Closed loop control by the servo motor and program throughout the capping process. Capping torque change control via HMI.
Different changing by templates
Made of PP, designed by bottle shape, with smooth surface. It can not only stabilize the positioning, prevent the bottle from being scratched; and allows quick changeover.
Unqualified product rejection
After capping, there is a dual-conveyor with sensors; The qualified products are normally transported, and the unqualified ones (no cap, no inner tube, tilted cap) will be automatically split to another conveyor by swing cylinder.
Product Paramenters
Why Choose Us
A wide variety of packaging equipment
Huituo Tech is one of the largest privately held packaging machinery manufacturers in China. We are a leading developer and manufacturer of complete turnkey packaging solutions. Huituo offers a wide variety of packaging equipment that can be custom tailored to each unique product, including filling machines, capping machines, labeling machines, conveyors, and complete packaging systems. Other equipments are also available, including bottle unscramblers, bottle rinsers and washers, sleeve labeling machines, ink jet date coders, carton sealing machines, conveyors, turntables and palletizers, as well as other support packaging and process machinery.
Highly customized
We understand each customer may have unique packaging requirements; we can customize machinery to accommodate your product and even work with your existing packaging line. Once our engineers evaluate your products, our experienced staff will discuss the wide range of packaging equipment options available. We will then consult with you to determine which automation system best suits your needs.
We understand each customer may have unique packaging requirements; we can customize machinery to accommodate your product and even work with your existing packaging line. Once our engineers evaluate your products, our experienced staff will discuss the wide range of packaging equipment options available. We will then consult with you to determine which automation system best suits your needs.
Qualified, skilled technicians are available for trouble shooting and problem-solving to ensure your packaging line is up and running smoothly. All our equipment includes a one-year warranty on non-wear parts and labor. Extended warranties are also available. Standard equipment can often be shipped within 8-10 weeks of the purchase date. Most replacement parts are stocked and can be shipped within 24 hours of placing your order.
