Medical diagnostic reagents glass plastic ampoule plastic vial capping machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SRC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 200bpm | Caps Suitable: | Flip/disc-top |
Product Description
Medical diagnostic reagents glass plastic ampoule plastic vial capping machine

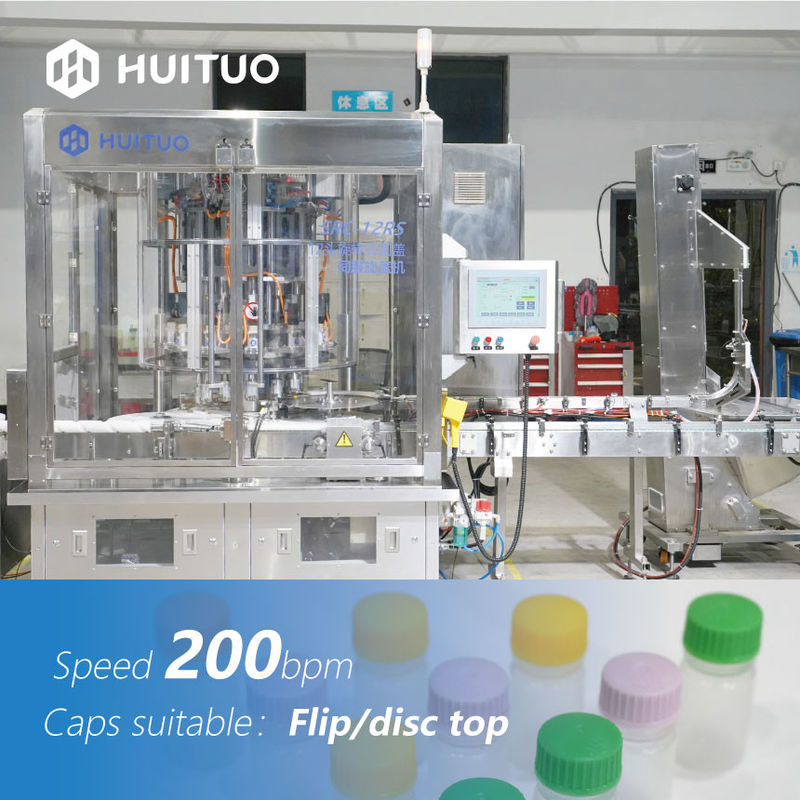

Huituo full automatic rotary capping machine

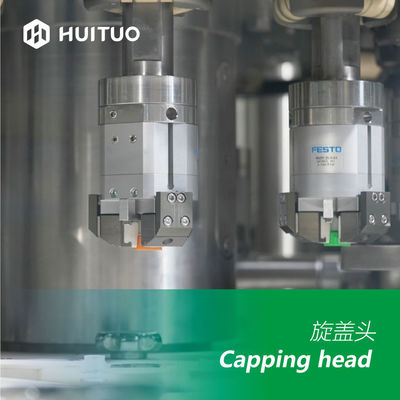

Capping head: 4-16 head
Speed: 50-200bpm
Bottle volume: 3ml-500ml
Liquid: chemical or medical industry
Bottles suitable: cylinder, flat and irregular shapes
Caps suitable: screw cap, leak-proof cap, rubber stopper etc.
Highlights
1. Change capping torque via touch screen
There are two options available for capping.
Option 1 is the traditional permanent magnet clutch. There is scale in the clutch showing the capping torque, which is cost-effective.
Option 2 is the servo torque control. Each capping head is installed a servo motor, allowing torque change via touch screen.
Servo capping with more accurate torque.
Adjust the capping torque via touch screen (torque range 0 ~ 3.5NM);
2. Connect to the filling machine on site synchronously
Huituo capping machine can realize synchronous connection with the filling machine. If the filling machine stops, the capping machine will stop. So does the acceleration.
3. Tool-free changeover within 15 min

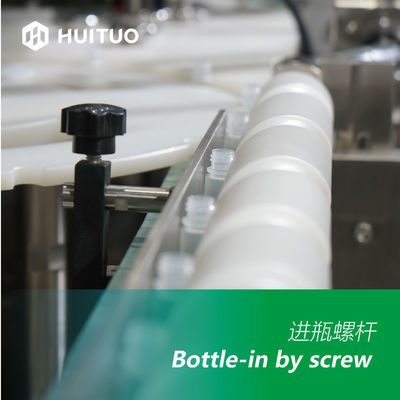

It uses screw rod for bottle separation, with tool-free quick-release design; no bottle, no cap, automatic alarm and shutdown; The templates are made of polymer polyethylene(PE), fully fitted to the bottle shape with smooth surface. It can not only stabilize the positioning, prevent the bottle from being scratched.
Changeover time required: 15min for 2 workers

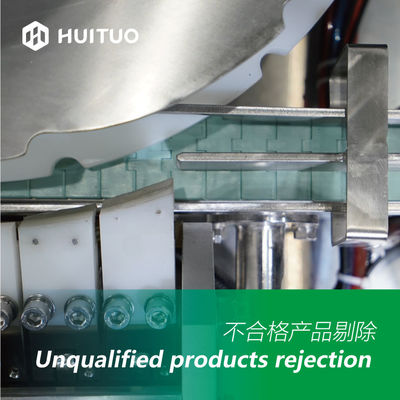

4. Unqualified products rejection
After capping, there is a dual-conveyor with sensors; The qualified products are normally transported, and the unqualified ones (no cap, no inner tube, tilted cap-higher than normal 2mm) will be automatically split to another conveyor by swing cylinder.
