Glass Ampoule Plastic Vial Rotary Capping Machine for Medical Diagnostic Reagents
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Speed: | 40-300bpm | Capping Head: | 4-20 |
| High Light: | Plastic Vial Rotary Capping Machine,Glass Ampoule Vial Rotary Capping Machine |
||
Product Description
Medical diagnostic reagents glass plastic ampoule plastic vial rotary capping machine from HUITUO
Highlight:
1. Working principle: continuous rotary
2. Speed: 40-300bpm
3. Torque control by servo, modify via touch screen;
or by permanent magnet clutch, which is highly cost effective
4. Changeover parts in modular design, within 15min
5. Capping efficiency 98%, and pass rate 99.9%
Main components
Automatic bottle feeder + automatic cap elevator and unscrambler + bottle-in/out template + capping mechanism + rejection mechanism + electrical control (Siemens system) etc.
Key parameters
| No. | Item | Description |
| 01 | Dimension | 2000mm*1800mm*2800mm, can be customized |
| 02 | Capping head | 4-20, can be customized |
| 03 | Stand-alone pass rate | 99% |
| 04 | Torque control | Servo or permanent magnet clutch |
| 05 | Speed | 40-300bpm, can be customized |
| 06 | Voltage | 220VAC~380VAC,50Hz-60Hz |
| 07 | Power | 20kw |
| 08 | Air source | 0.4-0.6Mpa clean and stable air source |
| 09 | Noise | ≦80 decibels |
| 10 | Weight | 4,000kg |
| 11 | Material |
Frame: carbon steel cladding stainless steel frame; Capping head: Aluminium alloy Screen door: stainless steel edging, plexiglass; Electrical cabinet: stainless steel; Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |

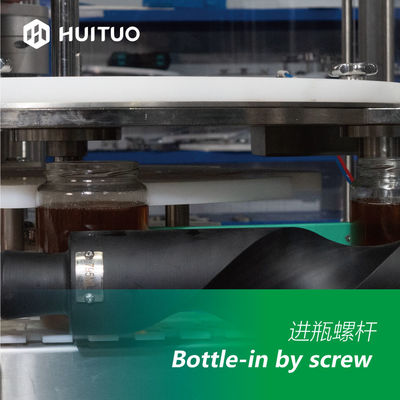

Bottle-feeding by screw rod
Huituo capping machine can realize synchronous connection with the filling machine. If the filling machine stops, the capping machine will stop. So does the acceleration. After filling, the bottle directly enters the capping machine by screw rod. There is a sensor at the bottle-in screw, no bottle, no capping and alarm when bottle-stuck.

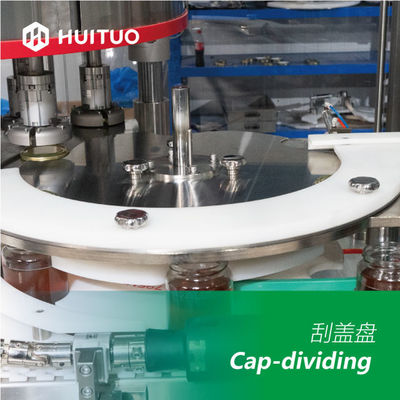

Cap-dividing
The cap divider is customized by the cap shape and different diameters would require changeover, but only the white part in the following pic needs to be changed.
Capping by servo motor
Torque controlling-first fast then slow: closed loop control by the servo motor and program throughout the capping process. In the process of capping, the servo motor can control the capping curve movement, and realize digital capping torque control.

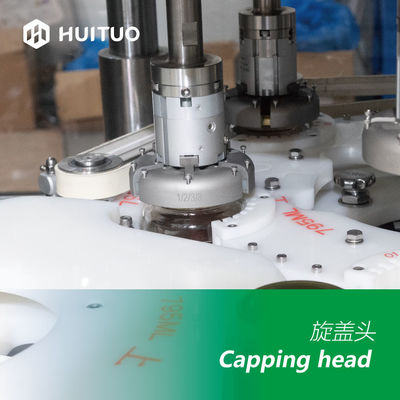

Capping head
Quick-release capping head will be designed for diversified production. The capping head is specially customized for more stable operation.

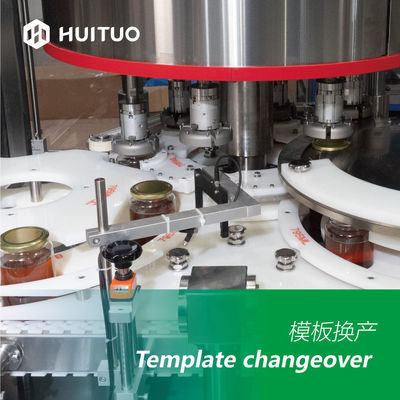

Different products changing
The templates are made of polymer polyethylene(PP), fully fitted to the bottle shape with smooth surface. It can not only stabilize the positioning, prevent the bottle from being scratched; and features fast changeover, with module structure.

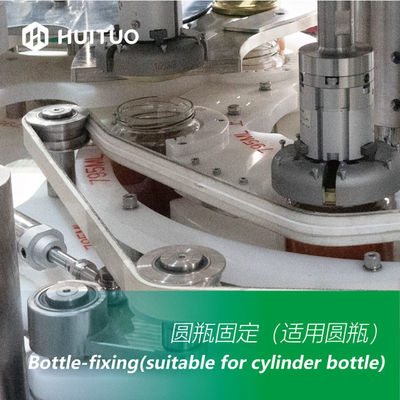

Bottle-fixing(suitable for cylinder bottle)
It’s easy to slip for the cylinder bottle when capping, and the bottle is soft and easy to scratch. Therefore, the bottle holder mechanism is adopted. The bottle holder is made of silica gel to prevent the bottle form from slipping and scratching.

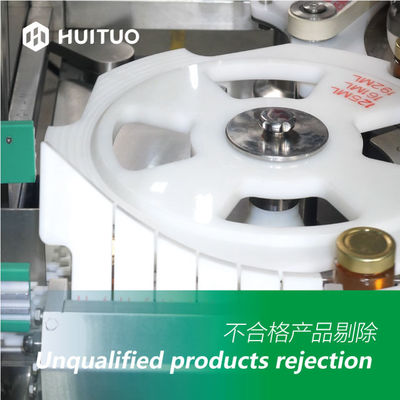

Rejecting of unqualified products
The qualified products are normally transported, and the unqualified ones (no cap, no inner tube, tilted cap-higher than normal 2mm) will be automatically split to another conveyor by swing cylinder.
Warranty and after-sales service
| Warranty | One-year |
| Within warranty |
Equipment damage caused by non-human factors during the warranty period will be repaired free of charge; If the equipment is damaged due to human factors, we will repair it in time and charge the cost. Respond to customer service issues immediately by telephone. |
|
Out of warranty
|
If the equipment is damaged after the warranty period expires, we will arrive at the site for maintenance within one day within one province, and will arrive at the site within two days within different provinces, after receiving the notice from the buyer,. |
| Response time |
For door-to-door service, 24-hour within the city, 48-hour within the province and 72-hour outside the province; 24-hour reply for overseas projects |
| Others |
During the design and production stages ,we will extensively solicit opinions from buyers to ensure quality while taking into account the optimal combination, to achieve the best solution. When the equipment arrives at the buyer's factory, we will arrange full-time technical personnel to provide professional technical services to ensure the correct installation and commissioning. If necessary, we will send 1-2 experienced technicians to conduct systematic training on technology and usage methods for on-site managers and operators. |
