Plastic Bottle Liquid Laundry Detergent Filling Capping Machine 2L 3L 4L 5L
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE,ISO9001,3C |
|---|---|---|---|
| Power(w): | 4000 | Application: | Chemical, Daily Chemical，food，bath Foam And Shampoo |
| Production Capacity: | 1500bph | Export Markets: | Europe And America,Global |
| Volumes: | 1-5L | ||
| High Light: | 2L Detergent Filling Capping Machine,5L Plastic Bottle Filling Capping Machine,1500bph 8 Head Filling Machine |
||
Product Description

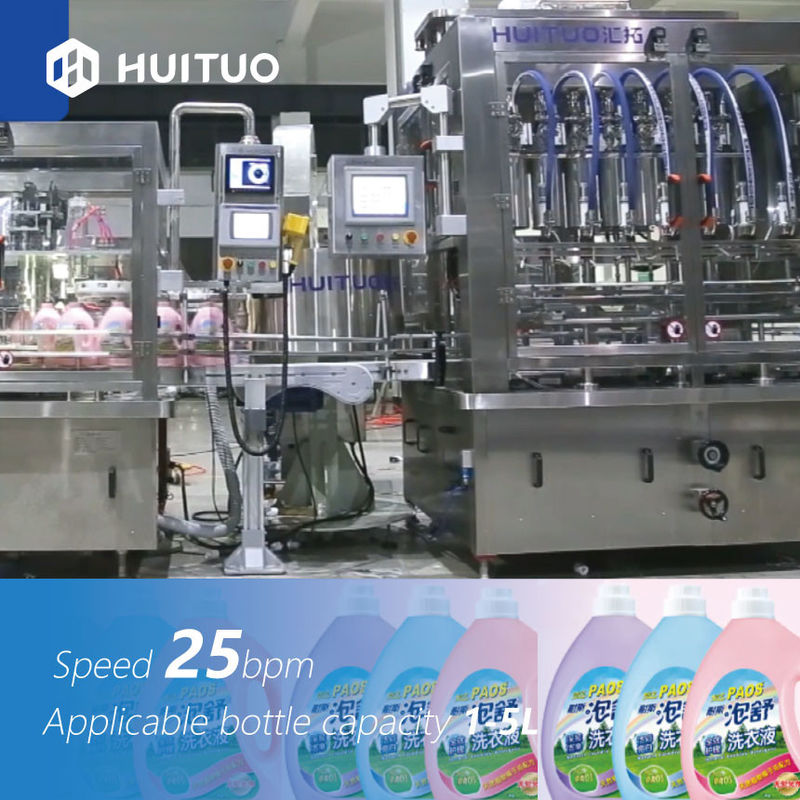

2L, 3L, 4L, 5L plastic bottle liquid laundry detergent filling and capping machine with measuring cap
8-head filling machine

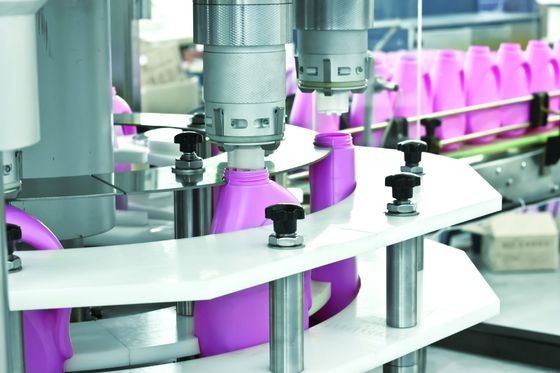

One-head capping machine
with cap elevators and sorters for the inner plug and measuring cap
Speed: 25bpm
Volumes: 1,000ml-5,000ml
Bottles: irregular shape, cylinder, flat bottles

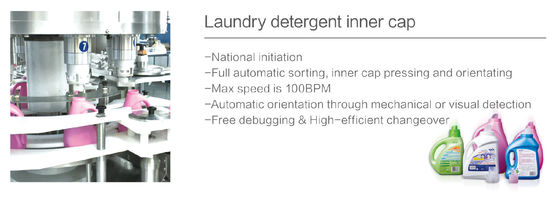

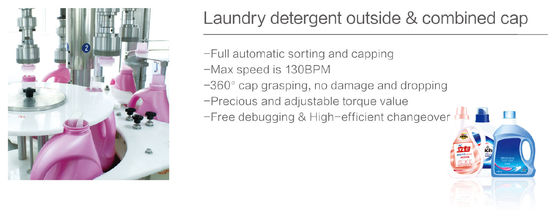

Caps: inner plug and measuring cap
It can be widely used for filling a variety of bottle types. Simple adjustment and replacement of changeover parts are required, when changing production. It not only saves costs, but also greatly improves the efficiency and productivity of the entire line.
It is composed of several main parts, including bottle/cap feeding + automatic cap elevator and unscrambler+ inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control etc.
Features
-PLC controlled ,integrated cap feeding ,grasping, inserting and rotating ( can affiliate with automatic cap sorting machine to realize full automatic)
-Gentle operation, no scratch and injury to caps and containers
-Quick changeovers
-Module structure, manipulate on the touch screen, easy maintenance
-Low running noise
| No. | Parts | Brand |
| 1 | PLC | Siemens |
| 2 | Touch screen | Siemens |
| 3 | Intermediate relay | Panasonic |
| 4 | Breaker | Schneider |
| 5 | Frequency converter | Schneider |
| 6 | Button | Schneider |
| 7 | Alarm light | Schneider |
| 8 | Safety door switch | SICK |
| 9 | Senor | SICK/IFM/LEUZE |
| 10 | Proximity switch | SICK |
| 11 | Air pressure switch | SMC |
| If the above brands are out of stock, we will choose equivalent brands instead. | ||
