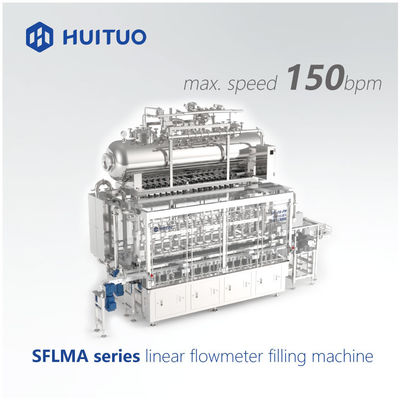

Automatic Changeover Linear Flowmeter Filling Machine For Laundry Detergent

Product Description

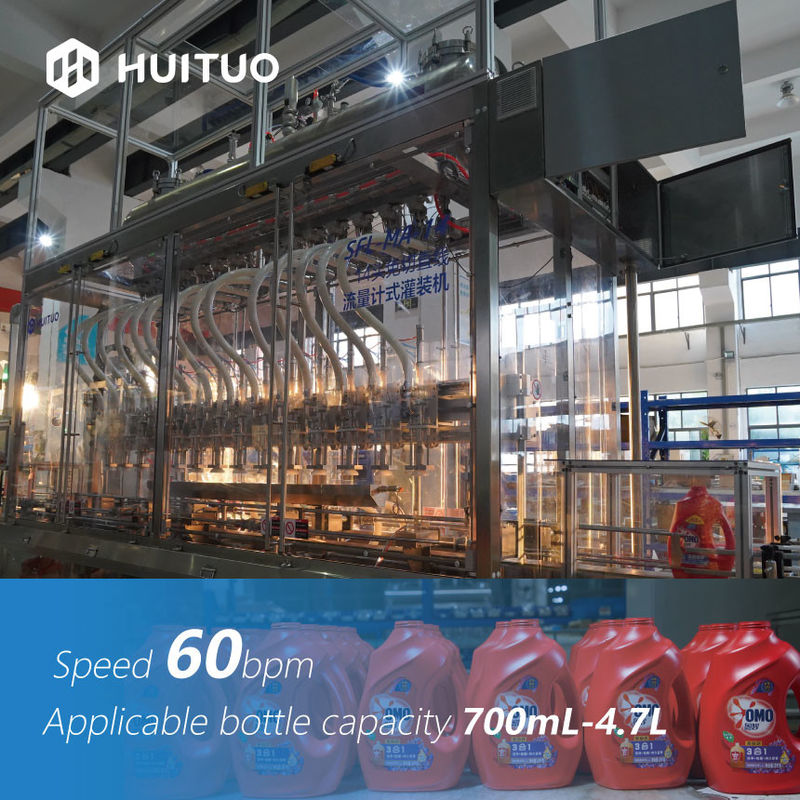

Huituo linear flowmeter filling machine for laundry detergent, with automactic changeover

Huituo 14-head flowmeter filling machine, with automatic filling nozzle space, guardrail adjustment.

The speed can reach 90bpm for the 1L laundry detergent, with the filling accuracy less than 0.3%.

● Higher filling accuracy: The measurement accuracy is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity. The sensor induced voltage signal has a linear relationship with the average flow velocity, so the measurement accuracy is high.

● Excellent dimensional stability brings long-term reliability of measurement

● Easy to clean

● CIP

● Wide range of applications

● Material viscosity changes will not affect the filling accuracy.

● In addition to measuring the volume flow of general conductive liquids, electromagnetic flowmeters can also be used to measure strong corrosive liquids such as strong acids and alkalis, mud, ore pulp and paper pulp;

● The electromagnetic flowmeter has reliable performance, high accuracy, low power consumption, stable zero point, and convenient parameter setting.

1.This machine is mainly composed of control system, conveying device, photoelectric detection, feeding device, storage tank, liquid level control device, filling device, bottle-clamping device and bottle stopper etc.

2. The electrical control part is composed of PLC and frequency converter, which features high integration, strong control ability and reliable operation. The touch screen makes the operation of the machine more reliable and convenient, and the human-machine interface is more friendly.

3. It can be widely used for filling a variety of bottle types. Simple adjustment and replacement of changeover parts are required, when changing production, which not only saves costs, but also greatly improves the efficiency and productivity of the entire line.

It is composed of the main tank body, the feeding pipe, the cleaning pipe, cleaning ball, the liquid level detection sensor, and the mechanical safety valve etc.

The liquid level of the liquid storage tank adopts probe type/guided wave radar (selected according to customer's material characteristics) to continuously and automatically feed in the set liquid level section; the liquid storage tank is additionally set with high and low level alarm and interlocking device to prevent overflow, and can be linked with the material transfer pump, the pump starts automatically when the liquid level is low, and the pump stops automatically when the liquid level is high.

The filling nozzle is a two-stage stroke structure. When the products of different specifications are replaced, the parameters can be adjusted in one touch on the touch screen without manual switching.
