Automatic Cosmetics Bottle Linear Piston Volumetric Filling Machine Filler 6 Head
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SFLPI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 60bpm | Applicable Bottle Capacity: | 20-200ml |
| Highlight: | Linear Piston Volumetric Filling Machine,6 Head Volumetric Filling Machine |
||
Product Description

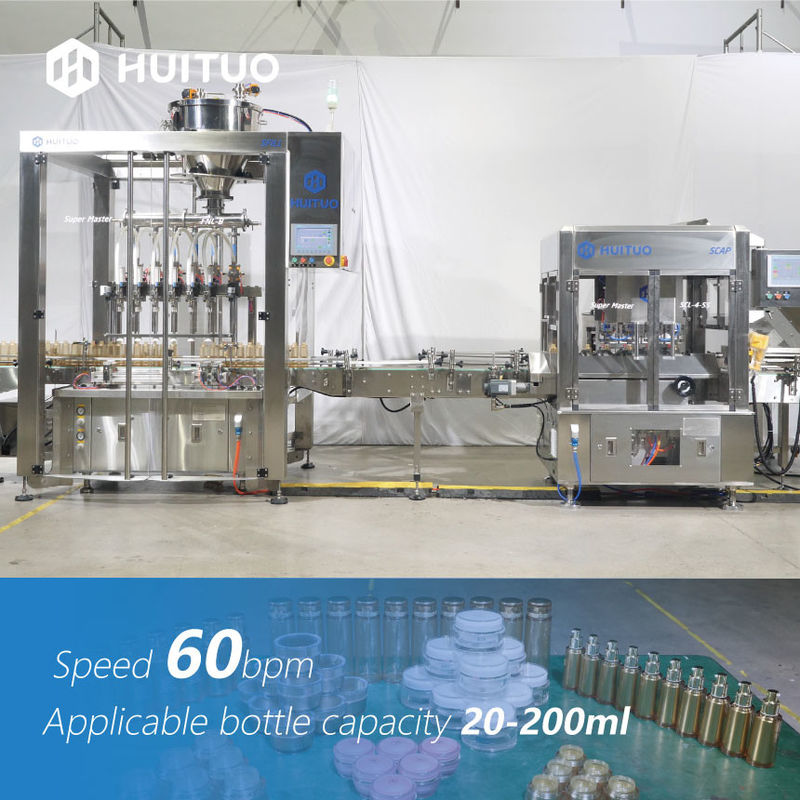

Automatic cosmetics bottle 6-head linear piston volumetric filling machine filler
Huituo automatic linear filling machine
The filling machine is suitable for various filling materials and high-foam products can be dived to the bottom of the bottle for filling.
Filling liquids
Cosmetics: toner, lotion, face cream, makeup remover etc.
Chemical: Shampoo, hand wash, liquid detergent, toilet cleaner, glass cleaner, lubricating oil and antifreeze etc.
Food: Oil, juice, honey, ketchup, mayonnaise, chili sauce, soy sauce, vinegar etc.
Pharmaceutical: syrup, oral solution, diagnostic reagent, disinfectants etc.
Main electrical components
| No. | Parts | Brand |
| 1 | PLC | Siemens |
| 2 | Touch screen | Siemens |
| 3 | Frequency converter | Siemens |
| 4 | Servo | Siemens |
| 5 | Breaker | Schneider |
| 6 | Button | Schmeral |
| 7 | Alarm light | Schneider |
| 8 | Sensor | SICK/IFM/LEUZE |
| 9 | Pneumatic | FESTO/SMC/AirTAC |
This filling machine consists of four main parts: bottle conveyor + filling measurement + COP (clean out of place) + electrical control. It uses piston-type volume measurement and PLC servo precision drive.
The filling nozzle is designed for the characteristics of cosmetic products and adopts an advanced non-drip anti-drawing structure design. Each filling nozzle is internally sealed by a long and thin sealing rod, and the sealing rod is internally sealed by the air cylinder. Quick snap-in connection is for easy daily maintenance operations such as cleaning.
Huituo filling machine adopts advanced filling mouth anti-collision self-protection function. Once the filling nozzle is incorrectly inserted into the bottle, or when it collides with other objects, the filling nozzle can be automatically disengaged from the mounting seat, and the entire filling nozzle will stop falling or rise rapidly to avoid damage or injury to the filling nozzle.
Why Huituo?
Professional in fluid control, pressure control and CIP
1. Accurately control the flow, with the standard program specially developed for flow meter control, combined with the customized PLC module;
2. Easily meet the multi-speed control of the flowmeter, with the standard program specially developed for the flowmeter valve and filling nozzle cylinder;
3. Accurately control the tank pressure to ensure the filling accuracy, with the tank pressure control standard program specially developed for flow meters, whether it is from a digital valve or a PID valve;
Further ensures the filling accuracy, with the tank liquid level control standard program specially developed for flow meters, which can be adapted to feed pumps in the market. Featuring adaptive feeding speed based on the liquid level, the tank level is always in a small range of controllable fluctuations, which greatly reduces the impact on the pressure of the tank.
