Fully Automatic Detergent Bottle Filling Machine For Laundry Liquid
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SFLMA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 80bpm | Applicable Bottle Capacity: | 500~750ml |
| High Light: | 80bpm Detergent Bottle Filling Machine,750ml Automatic Bottle Filling Machine,750ml Detergent Filling Machine |
||
Product Description

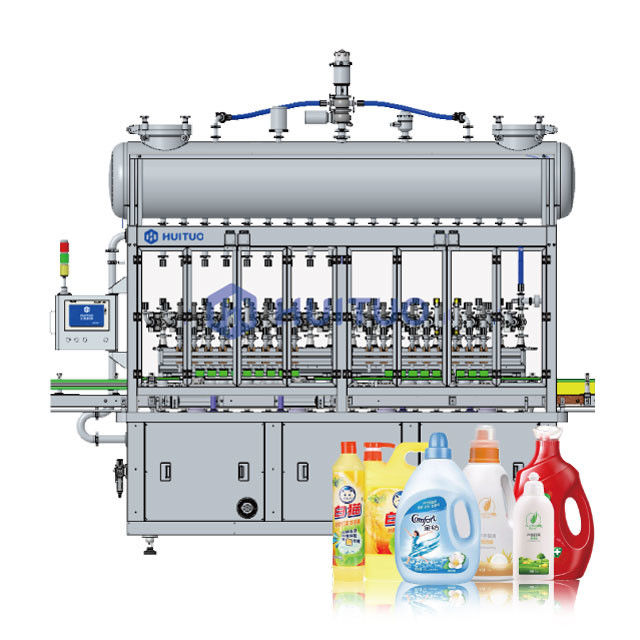

Fully automatic bottle flow meter filling machine for liquid laundry detergent
Our SF series flowmeter filling machine is suitable for filling materials with different viscosity. It has been widely used in chemical, food, medicine, and many other industries, featuring stable and reliable performance, high filling accuracy, convenient adjustment and so on.
FEATURES AT A GLANCE
1. Wide application, suitable for different containers and liquids.
2. Filling range from 100ml to 5,000mland even more.
3. Bottle feeding: one row, two-row or three-row available, based on the capacity requirements.
4. Electromagnetic and mass flow meteravailable
5. Flowmeter brand: KROHNE and E+H
6. Filling accuracy 0.3%
7. Quick and easy changeover, automatic changeover is optional
8. Storage tank designed in GMP grade
9. Liquid contact parts meet the "FADCRF21" standard
10. (Pressurized) CIP and SIP available, cleaning time 5-10min

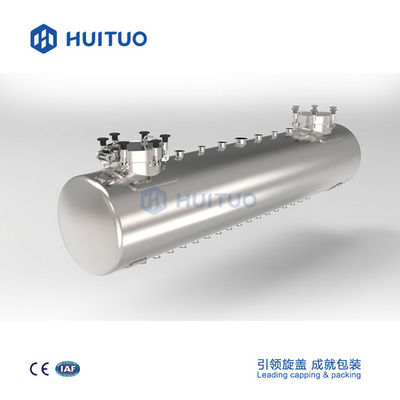

GMP storage tank

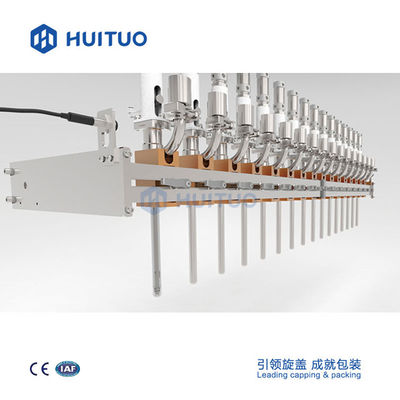

316L filling nozzle

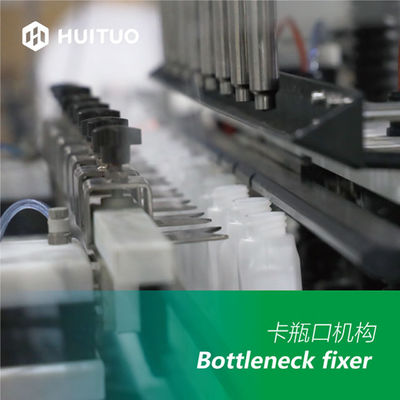

Bottle mouth fixing part
the slide conveyor. All fastening handles use quick-install handles, with no tools when adjusting.

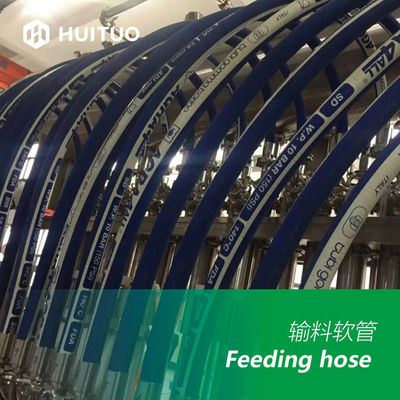

Feeding hose
sterilized at 110 degrees for 30 minutes.

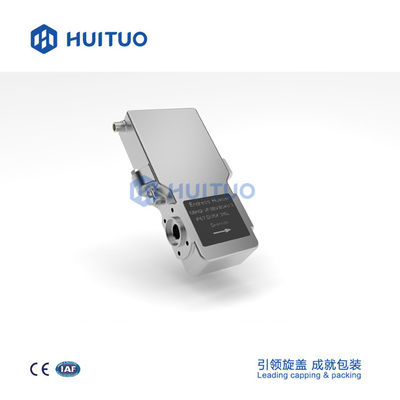

Advantages of electromagnetic flowmeter:
1. The measurement accuracy is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity. The sensor induced voltage signal has a linear relationship with the average flow velocity, so the measurement accuracy is high.
2. The range of the electromagnetic flowmeter is wide (maximum flow / minimum flow).
3. In addition to measuring the volume flow of general conductive liquids, electromagnetic flowmeters can also be used to measure strong corrosive liquids such as strong acids and alkalis, mud, pulp and pulp;
4. Two-way measurement system, which can measure forward flow and reverse flow.
5. Electromagnetic flowmeter has reliable performance, high precision, low power consumption, stable zero point and convenient parameter setting. Click on the Chinese display LCD to display cumulative flow, instantaneous flow, flow rate, flow percentage, and more.
Contact parts
Tank: FRP(glass fiber reinforced plastics)
Distributor: PVC
Filling nozzle: Plastic-based/254 steel
Outer frame: Stainless steel sprayed with Teflon
Main transmission parts: plastic PP
Conveyor: Plastic
Electric box material: carbon steel (plastic sprayed on the outer surface)
Feed pipe, pipe joint: plastic (PVDF)
Level detection: PTFE probe
Seals: PTFE (long service life), fluoro rubber (average service life) are defined as regular replacement of wearing parts
Why Huituo?
Professional in fluid control, pressure control and CIP
1. Accurately control the flow, with the standard program specially developed for flow meter control, combined with the customized PLC module;
2. Easily meet the multi-speed control of the flowmeter, with the standard program specially developed for the flowmeter valve and filling nozzle cylinder;
3. Accurately control the tank pressure to ensure the filling accuracy, with the tank pressure control standard program specially developed for flow meters, whether it is from a digital valve or a PID valve;
Further ensures the filling accuracy, with the tank liquid level control standard program specially developed for flow meters, which can be adapted to feed pumps in the market. Featuring adaptive feeding speed based on the liquid level, the tank level is always in a small range of controllable fluctuations, which greatly reduces the impact on the pressure of the tank.
