Automatic Piston Servo Filling Machine 150bpm For Honey And Syrup
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SFLPI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 150bpm | Applicable Bottle Capacity: | 250-700g |
| Highlight: | 150bpm Piston Servo Filling Machine,Syrup Piston Servo Filling Machine,Automatic Piston Filling Machine 700g |
||
Product Description

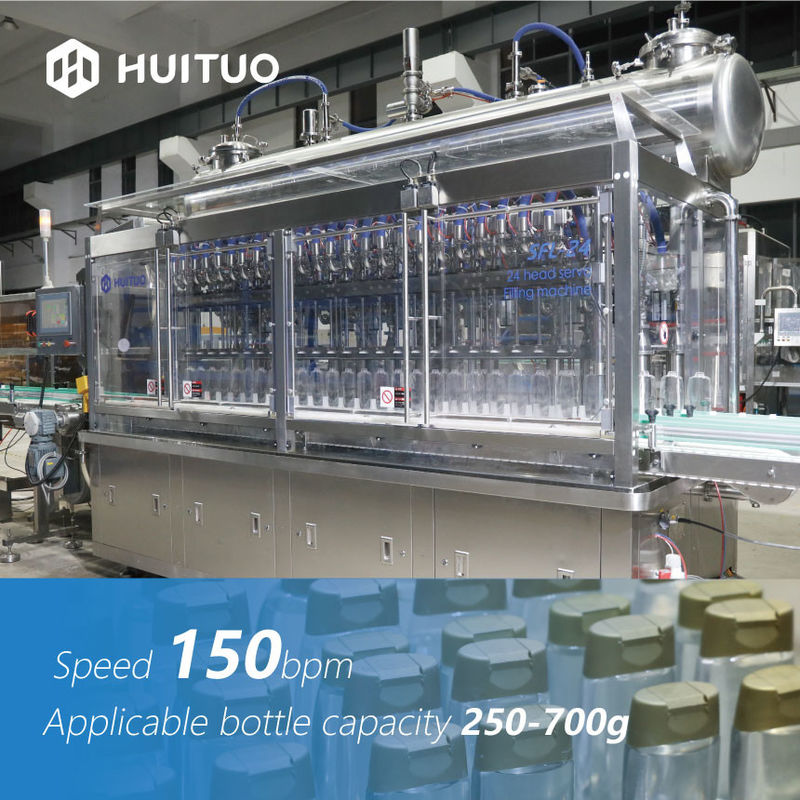

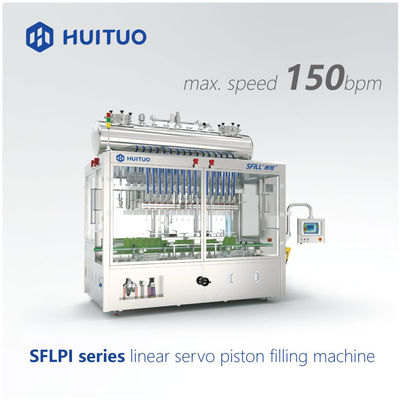

Huituo automatic 150bpm piston servo filling machine for honey and syrup
SFLPI is mainly composed of control system, conveying device, photoelectric detection, feeding device, storage tank, liquid level control device, filling device, diving device, bottle holding device, bottle blocking device, etc.
Usage
The SFLPI series piston filling machine can be used for filling various non-gas liquids and viscous liquids. A series of operations such as counting into bottles, filling, and conveying out bottles are completed automatically. It can be widely used in different industries such as daily chemical, food, medicine etc. It can be matched with capping machine and labeling machine to form a production line.
SFLPI-24 adopts PLC, HMI, servo control system, low voltage components for control, easy and stable operation, high production efficiency etc.
Adjust the filling volume via the touch screen, and the adjustment is convenient and accurate.
Photoelectric counting, PLC control, no bottle no filling.
The anti-drip filling system effectively prevents the occurrence of dripping.
Storage tank
There are 4 spray balls in the tank, as shown in the above Pic. The four spray balls can clean the material pipe without dead ends. It uses an ultrasonic liquid level sensor to control the liquid level, and the temperature sensor to monitor the inside temperature. The emptying valve is used for material emptying and tank cleaning and drainage after batch production.
Anti-collision protection
The diving part is equipped with anti-collision protection for the filling nozzle. When there is malfunction, the filling nozzle collides with the bottles, and the filling nozzle is lifted up, after the through-beam photoelectric detects the signal, it will stop diving and prompt an alarm message. Pay special attention to the fact that when the filling nozzle collides with the bottle mouth, it is necessary to check whether the filling nozzle is bent during the discharge and filling. If it is bent, it needs to be corrected.
Filling nozzle
The filling nozzle is specialized designed with to prevent drop / spill.
Piston
We choose the piston size based on the different volume ranges to ensure the best filling accuracy.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
