Huituo Liquid Bottle Piston Filling Machine For Pet And Glass Containers
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SFL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Power(w): | 4kw | Dimension(l*w*h): | 2000mm(L)* 1200mm(W)*2500mm(H) |
|---|---|---|---|
| Certification: | CE,ISO | Filling Heads: | 2-24 |
| Filling Range: | Customized | Filling Accuracy: | 0.5%-1% |
| High Light: | ISO Liquid Bottle Piston Filling Machine,Plc Control Piston Filling Machine,Linear Piston Filler |
||
Product Description

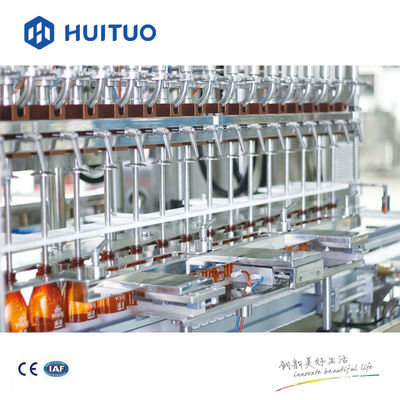

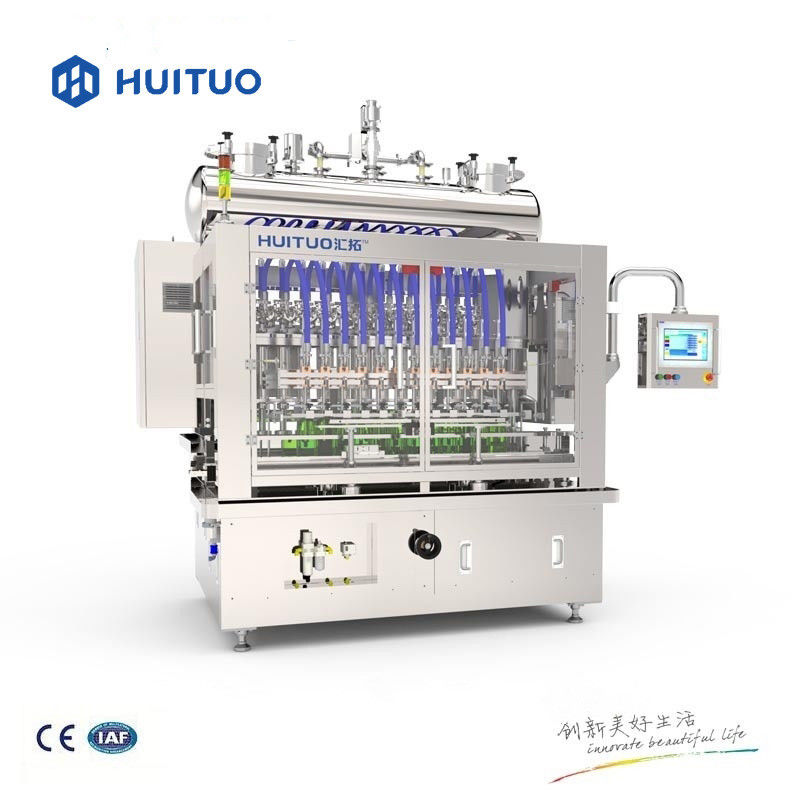

Huituo Bottle Liquid Pistion Filling Machine Is Suitable For Pet And Glass Containers
Major Characteristics:
(1) Huituo linear pistion filler, suitable for various kinds of plastic and glass containers
(2) PLC controlled, fully automatic
(3) The filling precision of each or whole filling nozzles can be adjusted.
(4) The surface of machine is made of high quality stainless steel .
(5) Anti-corrosive special valves of OMAL Italy, unique design of vacuum to avoid leaking.
(6) No bottle, no filling.
(7) Widely applicable in low or high viscous liquid, such as glass cleaner, shampoo and hand wash in chemical industries and edible oil, ketchup and mayonnaise in food industry, and different cosmetics and medical products etc.
Technical Parameters:
(1) Machine dimension: 2000mm(L)* 1200mm(W)*2500mm(H) (Subject to actual design)
(2) Filling heads: 2-24 or more, it can be linear or rotary
(3) Filling range: Customized
(4) Diameter of bottle mouth: Customized
(5) Filling accuracy: 0.5%-1%
(6) Power supply: AC380V,50Hz; AC220V,50Hz (customized)
(7) Air consumption:0.5-0.6 Mpa clean and stable compressed air
Wooden case packing
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
About Us
Since its foundation in 2010, Huituo has set up customer-centric R&D, processing, manufacture, marketing and sales system. As one of the leading intelligent capping and smart packaging manufactures,
Huituo is committed to meeting the industry specific needs with a high degree of accuracy and many options to choose from.
