supplier wholesales acid filling machine polyurethane foam filling machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | FLN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Packaging Type: | Bottles | Packaging Material: | Glass, Plastic |
|---|---|---|---|
| Type: | Filling Machine | Condition: | New |
| Application: | Chemical, Daily Chemical | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | AC 220V ;50Hz Or 380V; 50Hz |
| Power: | 1.5kw | Dimension(L*W*H): | 2000mmx1200mmx2300mm |
| Weight: | 650Kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai | ||
| High Light: | anticorrosive liquid filling machine,multi head liquid bottle filler |
||
Product Description
supplier wholesales acid filling machine polyurethane foam filling machine

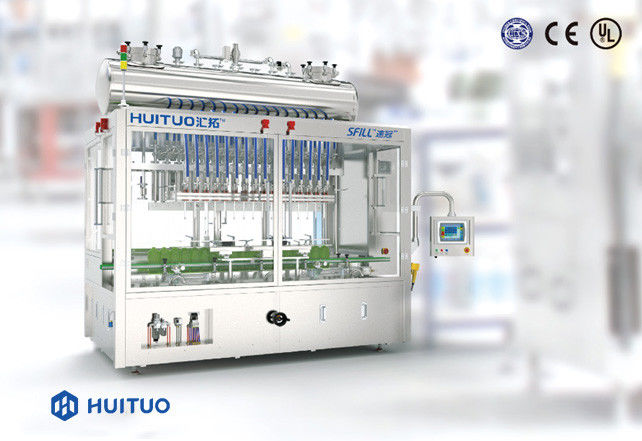

FLP linear piston filler Series
AUTOMATIC LINEAR PISTON FILLING MACHINE
(FOR STRONG ACID AND ALKALI PRODUCT)
Major Technical Parameters:
1. Machine Dimension(L*W*H): 2m*1.2m*2.3m
2. Speciation of container: height: 50mm-350mm;diameter:30-100mm(Abnormal bottles also can use)
3. Power suply: AC 380V, 50Hz
4. Machine power:1.5Kw-4kw
5. Filling error: (50ml-100ml)plus or minus 1%
(100-500ml)plus or minus 0.5%
(500-1000ml)plus or minus 0.3%
6. Number of filling heads: 6/8/10/12/16(can be customized)
7. Production capacity: 2500-6000 bottles/hour
8. Air operated source: 0.6Mpa clean and stable compressed air
Major Characteristics:
(1) 6-16 heads linear pistion filler, suitable for various kinds of plastic and glass containers
(2) PLC controlled.
(3) The filling precision of each or whole filling nozzles can be adjusted.
(4) The surface of machine is made of anti-corrosive .
(5) Anti-corrosive special valves of OMAL Italy, unique design of vacuum to avoid leaking.
(6) Filling nozzles are made of anti-corrosive plastic.
(7) Safety design for no bottle, no filling.
(8) Widely applicable in low viscous, strong corrosive, high foamy liquid.
Details :
1. Filling nozzles are made of anti-corrosive plastic
2. Anti-corrosive special valves of OMAL Italy
Packaging & Shipping:
Packing:
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets,accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
(4) We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
About Us:
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic capping machine?
Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the longer delivery time.
