Min 4200 Bottle / Hour Bottle Filling Capping Labeling Machines
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Packaging Type: | Wooden Case |
|---|---|---|---|
| Packaging Material: | Wood | Type: | Filling Machine |
| Applicable Industries: | Hotels, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Application: | Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380VAC | Dimension(L*W*H): | 2000mm*1600mm*2600mm |
| Weight: | 3800KG | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Key Selling Points: | Easy To Operate | Cap Availability Size: | According To Requirements |
| Cap Diameter: | ≤50mm | Bottle Height: | 160-300 Mm |
| Screw Capping Heads: | 4-12heads (according To Requirements) | Production Capacity: | >=4200 Bottle/hour |
| Torque Control: | ±0.3Nm | Capping Conformity: | >=99.5% |
| Air Source Needs: | 0.6Mpa Clean And Stable Air Supply | Port: | Shanghai |
| High Light: | 4200 bph filling capping labeling machines,daily chemical filling capping and labeling machine |
||
Product Description

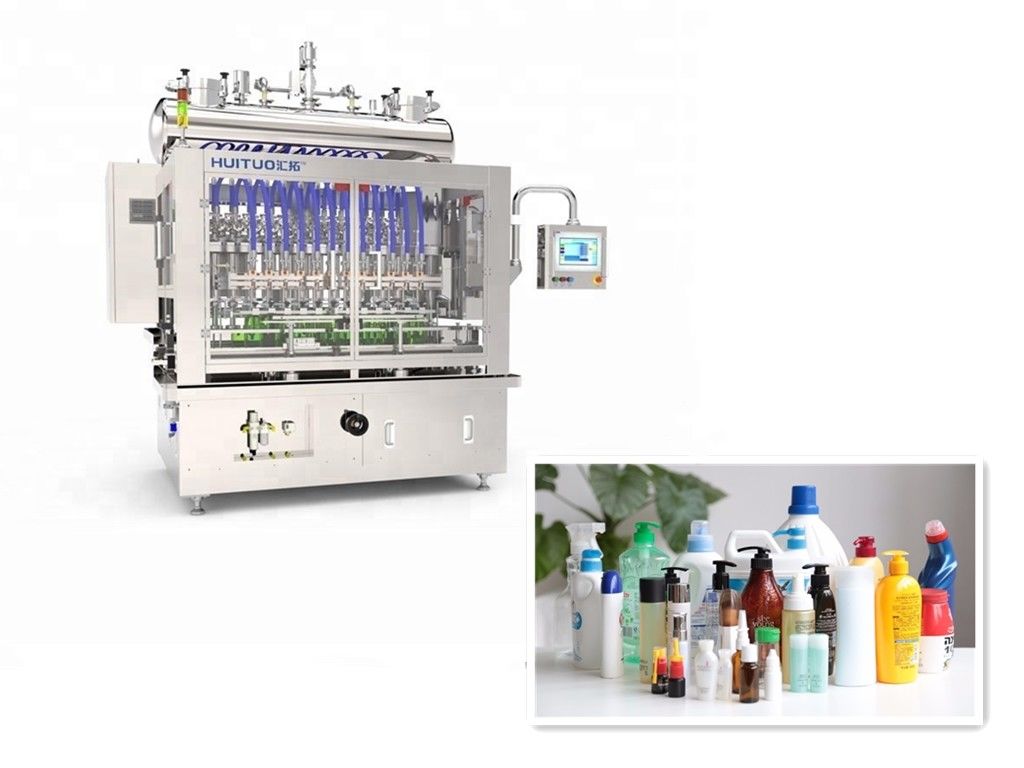

Customized automatic bottle filling capping and labeling machine for antiseptics, disinfector and sanitizer
1. This machine is mainly composed of control system, conveying device, photoelectric detection, feeding device, storage tank, liquid level control device, filling device, bottle-clamping device and bottle stopper etc.
2. The electrical control part is composed of PLC and frequency converter, which features high integration, strong control ability and reliable operation. The touch screen makes the operation of the machine more reliable and convenient, and the human-machine interface is more friendly. Photoelectric sensors use advanced sensing components to make the machine's electromechanical integration a perfect performance.
3. It can be widely used for filling a variety of bottle types. Simple adjustment and replacement of changeover parts are required, when changing production, which not only saves costs, but also greatly improves the efficiency and productivity of the entire line.
Storage tank
It is composed of the main tank body, the feeding pipe, the cleaning pipe, cleaning ball, the liquid level detection sensor, and the mechanical safety valve etc. The liquid level sensor uses a guided wave radar and has a continuous liquid level detection function. The replenishment of the tank is performed according to the feedback signal of the liquid level detection. When the liquid level is at the set low liquid level, the butterfly valve opens and starts to replenish. When the high liquid level is set, the butterfly valve closes and stops feeding.

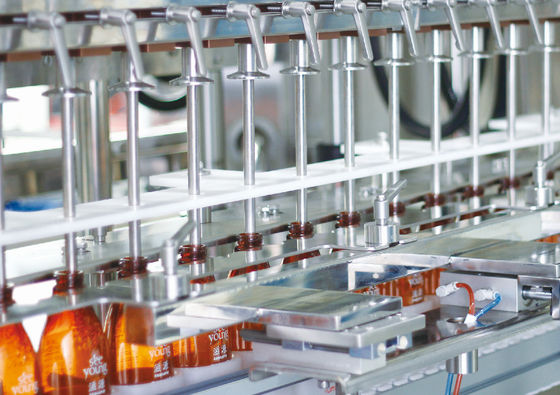

Filling head
Specially designed filling nozzle with high precision and long service life.
Feeding hose
It adopts branded conveying pipe, which conforms to food grade FDA, smooth EPDM rubber, abrasion resistance, ozone resistance and aging resistance, and is sterilized at 110 degrees for 30 minutes.
Bottleneck fixer
The bottle stopper uses a sliding stopper, which can be continuously adjusted for different bottle types. The slider uses a card slot structure, which is not easy to fall off on the slide conveyor. All fastening handles use quick-install handles, with no tools when adjusting.
Main electrical components
|
No. |
Parts |
Brand |
|
1 |
PLC |
Siemens |
|
2 |
Touch screen |
Siemens |
|
3 |
Intermediate relay |
Panasonic |
|
4 |
Breaker |
Schneider |
|
5 |
Frequency converter |
Schneider |
|
6 |
Button |
Schneider |
|
7 |
Alarm light |
Schneider |
|
8 |
Safety door switch |
SICK |
|
9 |
Photoelectric |
SICK |
|
10 |
Proximity switch |
SICK |
|
11 |
Air pressure switch |
SMC |
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic capping machine?
Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the longer delivery time.
