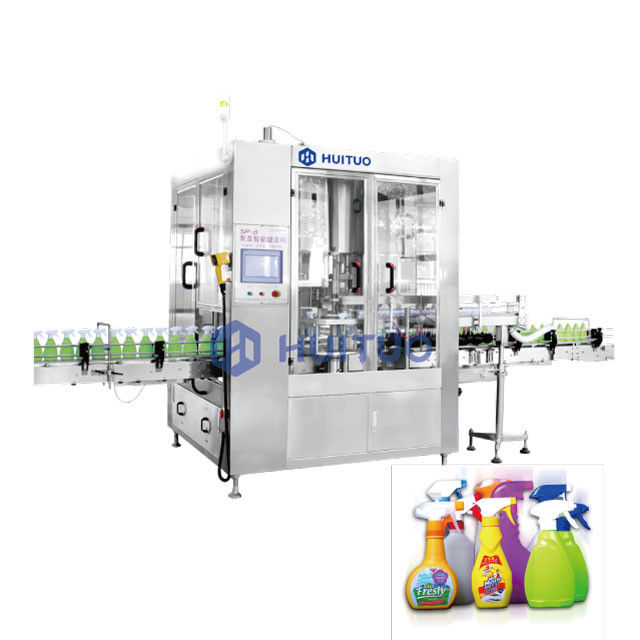

Automatic Bottle Spray Dispenser Trigger Capping Machine Capper
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SPM/SPU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 35+35bpm | Caps Suitable: | Lotion Pump, Spray Trigger |
| High Light: | Automatic Trigger Capping Machine,35bpm Trigger Capper,CE Trigger Capper |
||
Product Description
Automatic bottle spray dispenser trigger capping machine capper
Product OverviewTrigger capping machine
Highlight:
1. Bottle volume: 100ml-1,500ml
2. Speed: 20-100bpm (can be customized based on specific requirements)
3. Bottles suitable: cylinder, flat and irregular shapes
4. Caps suitable: lotion pump, flip-top, pull-push, Yorker, disc-top etc.
5. Siemens system
6. Gentle operation, no scratch and injury to caps and containers
7. Quick changeovers
8. Module structure, easy maintenance
9. Easy connected to filling machine and labeling machine
10. Low running noise
PRODUCT SPECIFICATIONS
FEATURES AT A GLANCE
1. Working principle: continuous rotary
2. Speed: 200bpm for pumps and 300bpm for screw-on caps
3. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch

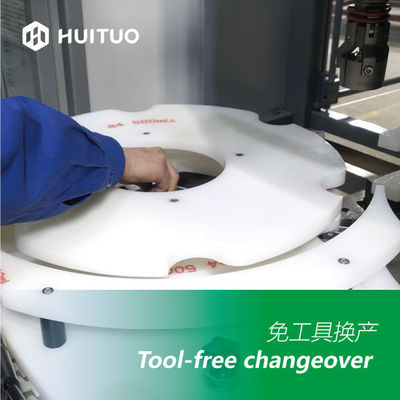

4. Changeover parts in modular design, within15min
5. Capping efficiency 98%, and pass rate 99.9%;

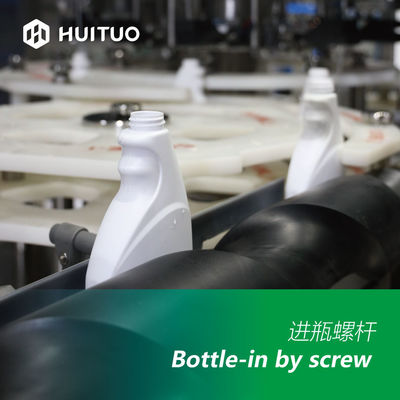

Bottle-feeding by screw rod

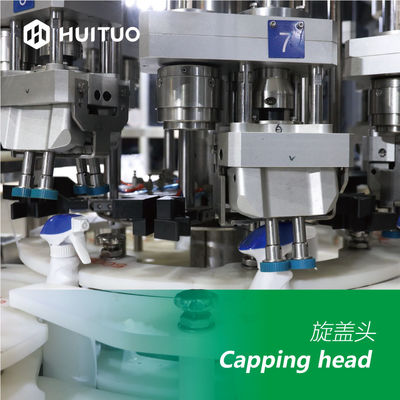

Capping head

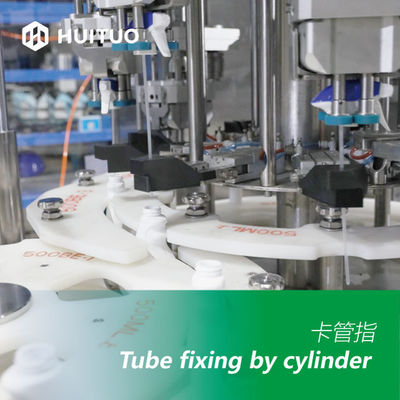

Tube-fixer
Overview
8-head capping machine (it can be customized based on specific requirements)
Speed: 35+35bpm
Bottle volume: 100ml-1,500ml
Liquid: hand wash, sanitizer, disinfectants
Bottles suitable: cylinder, flat and irregular shapes
Caps suitable: lotion pump, spray trigger
Highlight: able to deal with pump and trigger in one machine.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
