100ml 1500ml Bottle Capping Machine Speed 20-100 Bottles/Min For Cleaning Agents
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | ISO,CE |
| Model Number: | SPU-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden packing |
| Delivery Time: | 15-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
|---|---|---|---|
| Weight: | 4000-8000 Kg | Certification: | CE,ISO |
| Power(w): | 1.5KW | Export Markets: | Europe And America,Global |
| Speed: | 20-100bpm | Bottle Volume: | 100ml-1,500ml |
| High Light: | 1500ml Bottle Capping Machine,100Bottles/Min Cleaning Agents Capping Machine |
||
Product Description

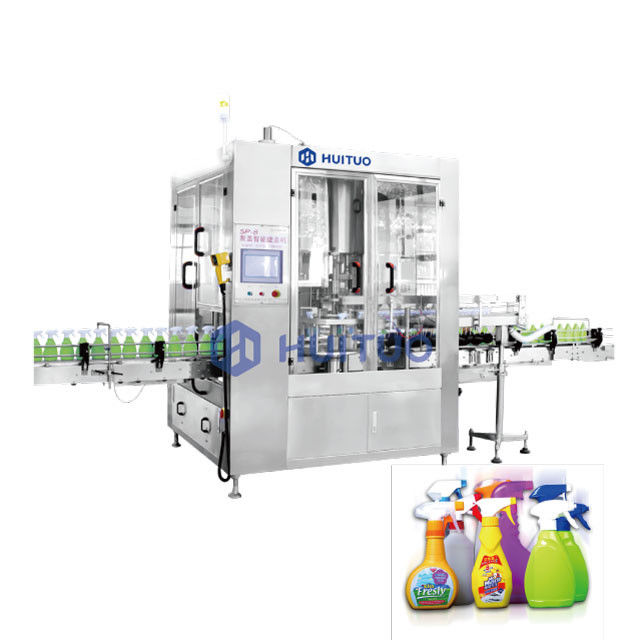

Spray trigger capping machine for cleaning agents, speed 20-100 bottles/min
Product Overview
Trigger capping machine
Highlight:
1. Bottle volume: 100ml-1,500ml
2. Speed: 20-100bpm (can be customized based on specific requirements)
3. Bottles suitable: cylinder, flat and irregular shapes
4. Caps suitable: lotion pump, flip-top, pull-push, Yorker, disc-top etc.
5. Siemens system
6. Gentle operation, no scratch and injury to caps and containers
7. Quickchangeovers
8. Module structure,easy maintenance
9. Easy connected to filling machine and labeling machine
10. Low running noise
1. Bottle volume: 100ml-1,500ml
2. Speed: 20-100bpm (can be customized based on specific requirements)
3. Bottles suitable: cylinder, flat and irregular shapes
4. Caps suitable: lotion pump, flip-top, pull-push, Yorker, disc-top etc.
5. Siemens system
6. Gentle operation, no scratch and injury to caps and containers
7. Quickchangeovers
8. Module structure,easy maintenance
9. Easy connected to filling machine and labeling machine
10. Low running noise
FEATURES AT A GLANCE
1. Working principle: continuous rotary
2. Speed: 200bpm for pumps and 300bpm for screw-on caps
3. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch
4. Changeover parts in modular design, within15min
5. Capping efficiency 98%, and pass rate 99.9%.
2. Speed: 200bpm for pumps and 300bpm for screw-on caps
3. Torque control: two types are available; by servo, modify via touch screen or by permanent magnet clutch
4. Changeover parts in modular design, within15min
5. Capping efficiency 98%, and pass rate 99.9%.

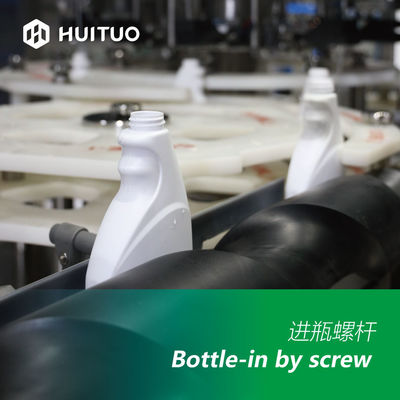

Bottle-feeding by screw rod

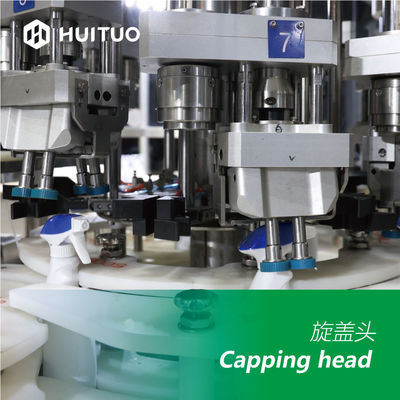

Capping head

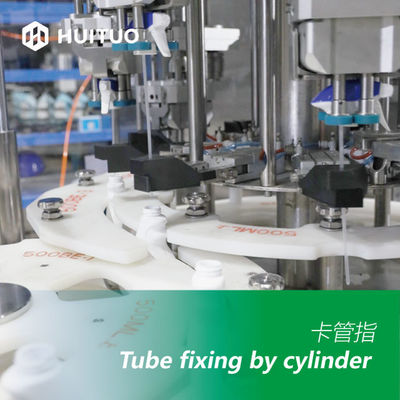

Tube-fixer
PRODUCT SPECIFICATIONS
SALES AND SERVICE NETWORK
Successful Project
Project in Unilever
Project in Denmark
Want to Know more details about this product
