High Speed Rotary Bottle Capping Machine For Filp Top And Pull Push Closures
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SSU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 150bpm | ||
| High Light: | 150bpm Rotary Bottle Capping Machine,Pull Push Closures Bottle Capping Machine |
||
Product Description

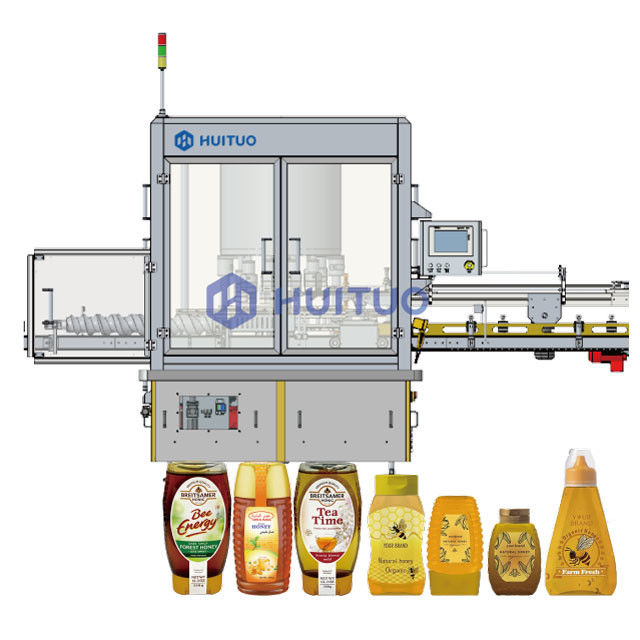

High speed rotary bottle capping machine for filp top and pull-push closures
Huituo cap-pressing machine
Able to deal with press-on or flip top caps and suitable for different types of bottles, whether cylinder, flat or irregular.
1. Working principle: continuous rotary
2. Speed: 60bpm-200bpm

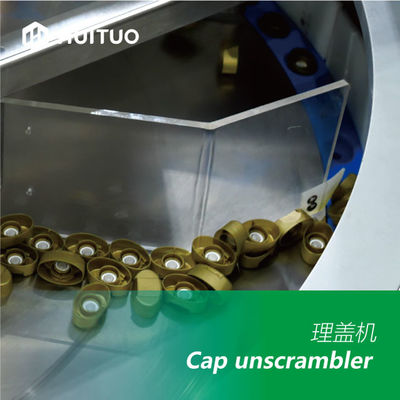

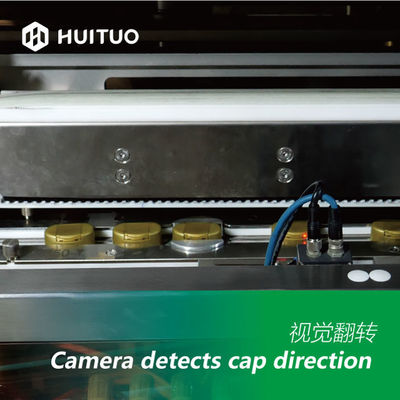

3. Cap unscrambler with camera to ensure the cap the same direction before capping
4. Changeover parts in modular design, within 15min
5. Capping efficiency 98%, and pass rate 99.9%.
Working process
Huituo automatic capping machine feeds bottle by screw rod, and the bottle is transferred to the capping part by the bottle-in star wheel which is designed based on the bottle shape, and the cap is fed by cap-feeding channel and the cap is sorted out to the cap feeding channel in an orderly manner with cap sorter unscrambler, and then transports them to the capping station. The tightened bottles will be sent out by the bottle-out star-wheel. For the unqualified products, it will be rejected to another conveyor.
Key components

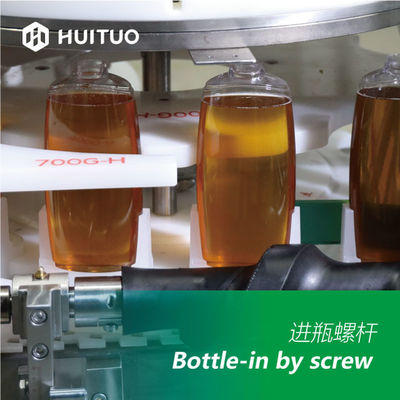

Screw rod(bottle-feeding)
The screw rod separates the bottle and is designed with bottle-in detection device, no bottle no cap-sending and the machine will automatically stop and alarm, if there is bottle stuck.
Middle capping part(star wheels)

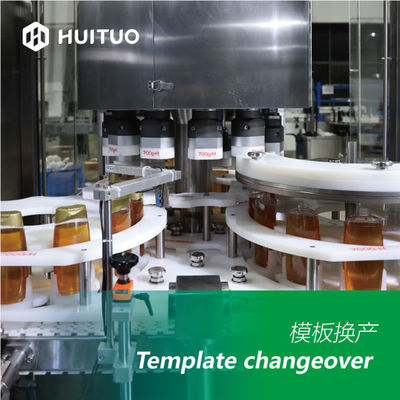

All star wheel changes are replaced as a whole. The replacement parts include the bottle-in star wheel, the bottle-out star wheel, middle star wheel, the inlet and outlet guide plates, and the outer ring.

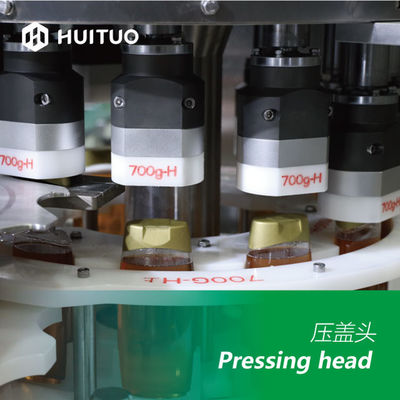

Cap-pressing head
Use special tools to loosen the locking bolts to replace the capping head, pay attention to the front and back directions of the head when replacing.

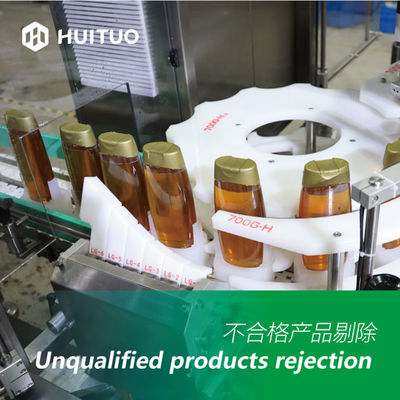

Rejection of unqualified products
After cap-pressing, there is a double conveyor structure with an intelligent detection device. The qualified bottles are normally transported, and the unqualified (no cap, higher cap) bottles are automatically shunted to another conveyor belt by using the swinging cylinder. When there is bottle stuck, the machine automatically stops and starts again after the problem is solved.
