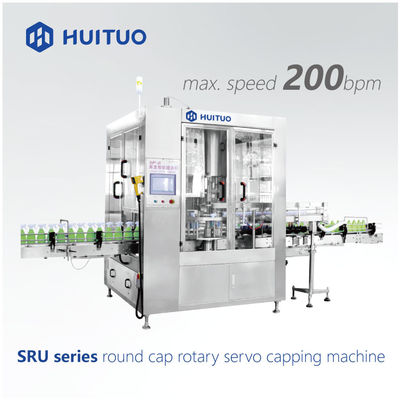

Automatic PET Bottle Glass Cleaner Rotary Capping Machine For Spray Trigger
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SRU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |

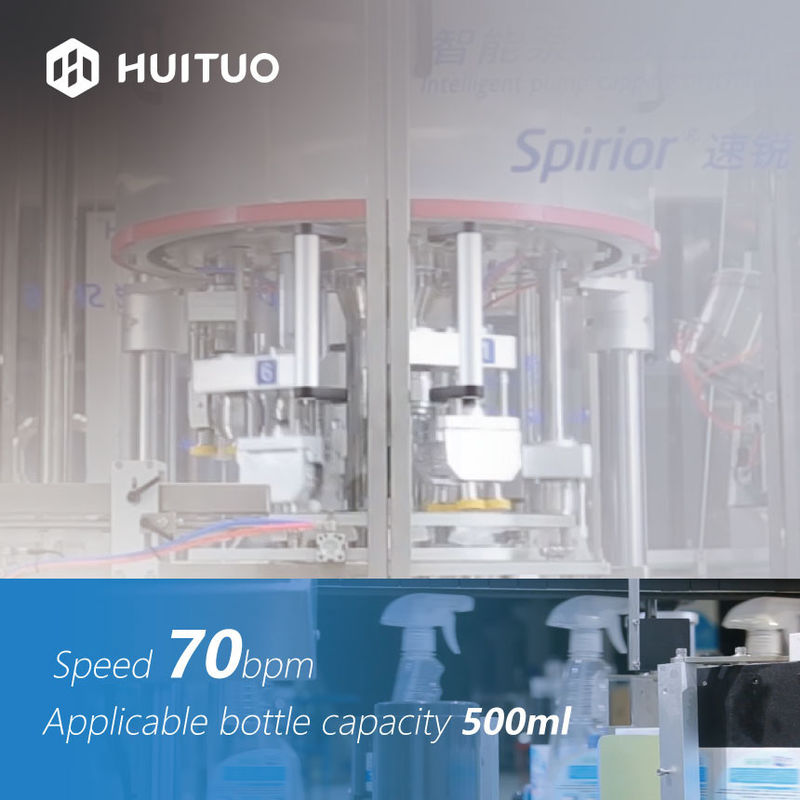

| Capacity: | 70bpm | Applicable Bottle Capacity: | 500ml |
| High Light: | PET Bottle Rotary Capping Machine,Spray Rotary Capping Machine,Plc Bottle Cap Sealing Machine |
||
Product Description
Huituo automatic PET bottle container glass cleaner roatry capping machine for spray trigger
Main components
Huituo roatry capper is composed of several main parts, including cap feeder + inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control etc.
Features
- PLC controlled, integrated cap feeding ,grasping, inserting and rotating (can affiliate with automatic cap sorting machine to realize full automatic)
- Production capacity can achieve 4,200bph with 8 heads(based on the specific speed requirement, which can be customized)
- Gentle operation, no scratch and injury to caps and containers
- Quick changeovers
- Module structure, manipulate on the touch screen, easy maintenance
- Suitable for different sizes of caps, applicable in daily chemical industry
- Easy connected to filling machine and labeling machine
- Low running noise
Machine details

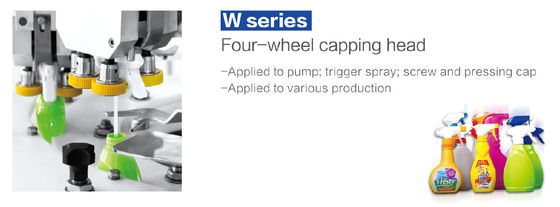

4-wheel capping head
-During capping process, torque evenly spreads to four wheels
-Make non-relative motion between wheels and caps
-Keep static station between wheels and bottles during capping
-High-precious torque control system, a stable and reasonable torque value

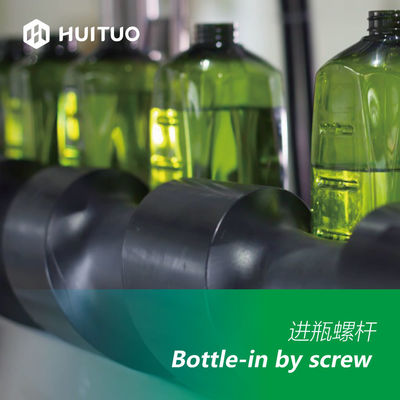

Bottle-in by screw
The bottle-in screw is processed by contour design; Precise and fast bottle feeding; Gentle movements, no damage to bottle.

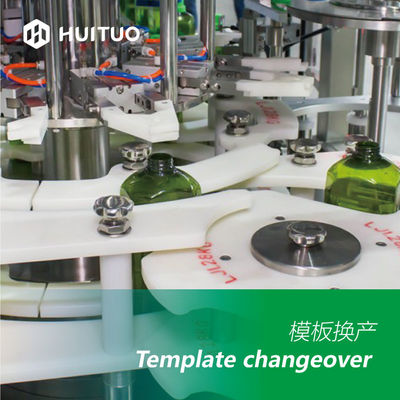

Template changeover
For different specifications of products, it adopts quick-release design, including the bottle-in star wheel, bottle-out star wheel, bottle-taking star wheel, bottle in-and-out guide plate, and outer retaining ring. The template and puck are color-coded to distinguish between different specifications.

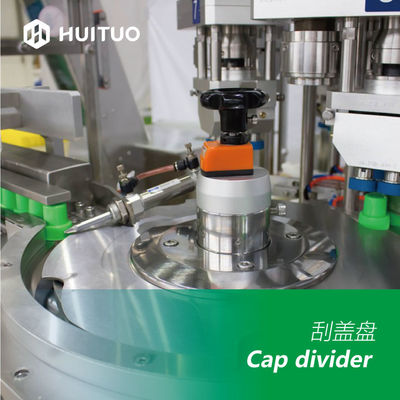

Cap divider
The cap divider is designed with overall replacement: After the red handle is unscrewed, the whole set is replaced. The replacement parts are as shown in the picture on the right.

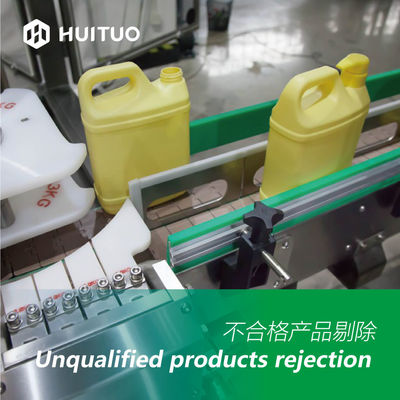

Unqualified products rejection
A double-conveyor belt structure with an intelligent detection sensor is installed at the bottle exiting part. The qualified bottles are normally conveyed, and the unqualified (no cap and no tube) bottles are automatically diverted to another conveyor belt by using a swing cylinder. When bottle block appears, the capping machine will automatically stop and it will start again when the problem solved.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
