Automatic Anti Corrosive Linear Flow Meter Filling Machine For Highly Acid Toilet Cleaner
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SFLMA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |

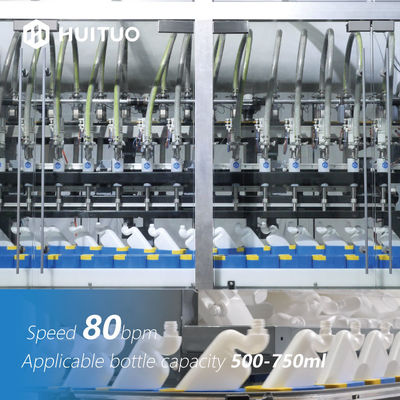

| Capacity: | 80bpm | Applicable Bottle Capacity: | 500~750ml |
| High Light: | 50Hz Linear Flow Meter Filling Machine,Anti Corrosive Flow Meter Filling Machine |
||
Product Description

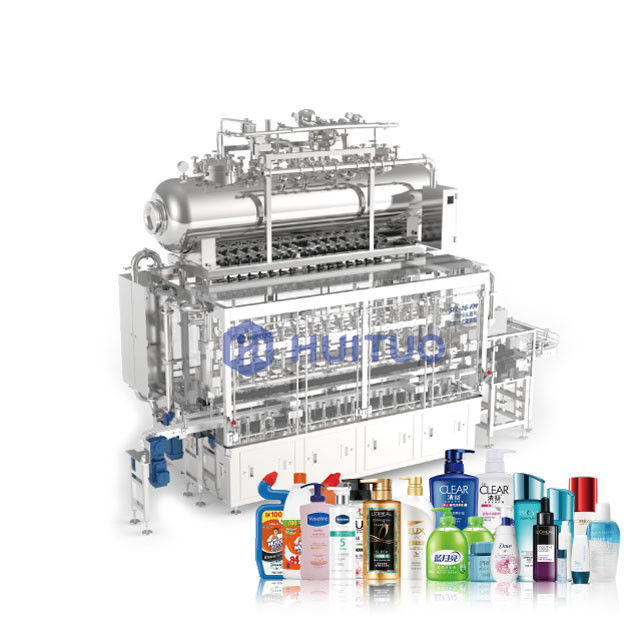

Automatic anti-corrosive linear flow meter filling machine for highly acid toilet cleaner
Linear flow meter filling machine:
Works with various types and shapes of containers and a wide range of liquid material.
1. Filling range from 100ml to 5,000ml and even more.
2. Bottle feeding: one row, two-row or three-row
3. Electromagnetic flow meter for conductive liquids and mass flow meter for non-conductive liquids available
4. Flow meter adopted: KROHNE and E+H
5. Filling accuracy 0.3%
6. Quick and easy changeover, automatic changeover is optional
7. Storage tank designed in GMP grade
8. Liquid contact parts meet the "FADCRF21" standard
9. (Pressurized) CIP and SIP available, cleaning time 5-10min
Contact parts
Tank: FRP(glass fiber reinforced plastics)
Distributor: PVC
Filling nozzle: Plastic-based/254 steel
Outer frame: Stainless steel sprayed with Teflon
Main transmission parts: plastic PP
Conveyor: Plastic
Electric box material: carbon steel (plastic sprayed on the outer surface)
Feed pipe, pipe joint: plastic (PVDF)
Level detection: PTFE probe
Seals: PTFE (long service life), fluoro rubber (average service life) are defined as regular replacement of wearing parts
Why Huituo?
Professional in fluid control, pressure control and CIP
1. Accurately control the flow, with the standard program specially developed for flow meter control, combined with the customized PLC module;
2. Easily meet the multi-speed control of the flowmeter, with the standard program specially developed for the flowmeter valve and filling nozzle cylinder;
3. Accurately control the tank pressure to ensure the filling accuracy, with the tank pressure control standard program specially developed for flow meters, whether it is from a digital valve or a PID valve;
Further ensures the filling accuracy, with the tank liquid level control standard program specially developed for flow meters, which can be adapted to feed pumps in the market. Featuring adaptive feeding speed based on the liquid level, the tank level is always in a small range of controllable fluctuations, which greatly reduces the impact on the pressure of the tank.
