Automatic Linear Screw Bottle Servo Capping Machine With Cap Elevator And Sorter
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SCL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |

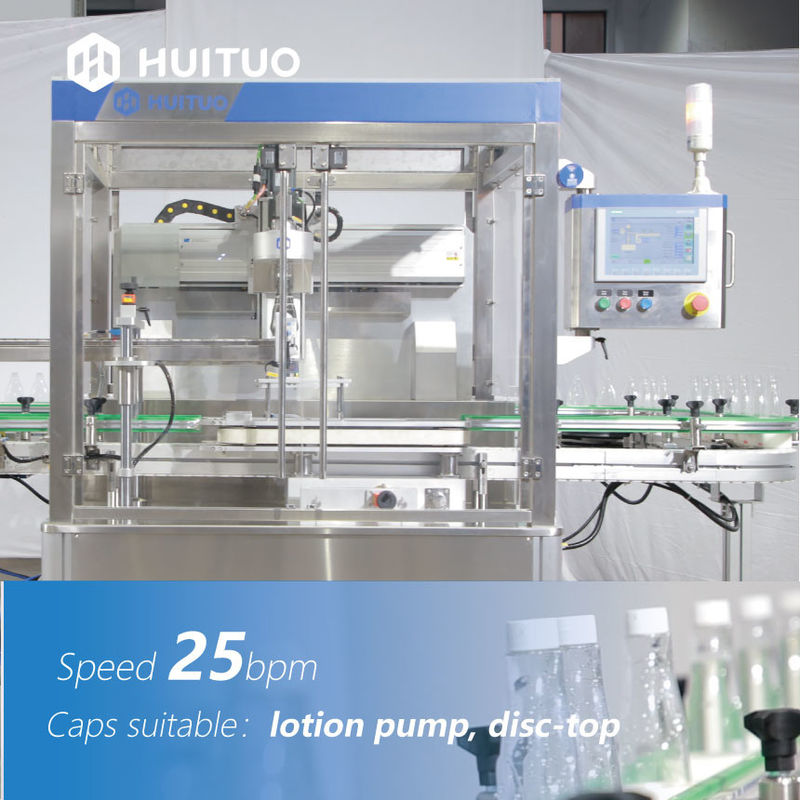

| Capacity: | 25bpm | Round CapCaps Suitable: | Lotion Pump,disc-top |
| High Light: | Linear Screw Bottle Servo Capping Machine,25bpm Automatic Servo Capping Machine,Sorter Servo Capper |
||
Product Description
Automatic linear screw bottle servo capping machine with cap elevator and sorter
Main technical parameters
| No. | Item | Description |
| 01 | Dimensions | 1200*900*2400(To be determined) |
| 02 | Capping head | One |
| 03 | Stand-alone pass rate | 99% |
| 04 | Speed | 1,500bph |
| 05 | Voltage | 380V 50Hz |
| 06 | Total power | 3kw |
| 07 | Air source required | 0.6Mpa clean and stable air source |
| 08 | Running noise (decibel) | ≦80 decibels |
| 09 | Machine weight | 800kg |
| 10 | Machine material |
Frame: carbon steel outsourcing stainless steel frame; screw cap contacting with cap: polyurethane (PU) ; Screen door: stainless steel edging, plexiglass; Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |
Follow-up capping machine
1. A single independent follow-up capping head adopts tracking capping, the capping head is driven by a servo motor, and matches conveyor speed.
2. The capping head grabs the cap in advance and when the sensor detects the bottle, the capping head follows to screw the cap. After the cap is screwed, it resets to the starting point, and then grabs the cap again for the next capping action cycle.
3. This capping does not hurt the bottle or cap, safe and stable, with high capping efficiency.
4. No changeover parts required. Just adjustment.
Capping head
The capping head adopts a round cap with three claws to grasp the cap, which is stable and reliable. The capping head rubber strip is made of wear-resistant material, which can effectively prevent the cap from being damaged during the capping process. Secondly, the capping head adopts servo motor to precisely control the capping torque.
Belt clamping and dividing bottle
The belt clamps the bottle and runs smoothly. The belt spacing can be adjusted according to different bottle types, making it easier to change production, ensuring that the belt's holding force is greater than the capping torque and avoiding slippage.
Automatic cap elevating unscrambler
It is to arrange the disorderly cap regularly with 2-in-1 cap elevating unscrambler. The cap is released from the cap-sending channel in an orderly manner.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
