Glass Bottle Capping Machine for Chilli Sauce Ketchup Mayonnaise And Chutneys
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 60bpm | Caps Suitable: | Round Cap |
| High Light: | Chutneys Glass Bottle Capping Machine,PLC Mayonnaise Glass Bottle Capping Machine,60bpm Filler Capper Machine |
||
Product Description

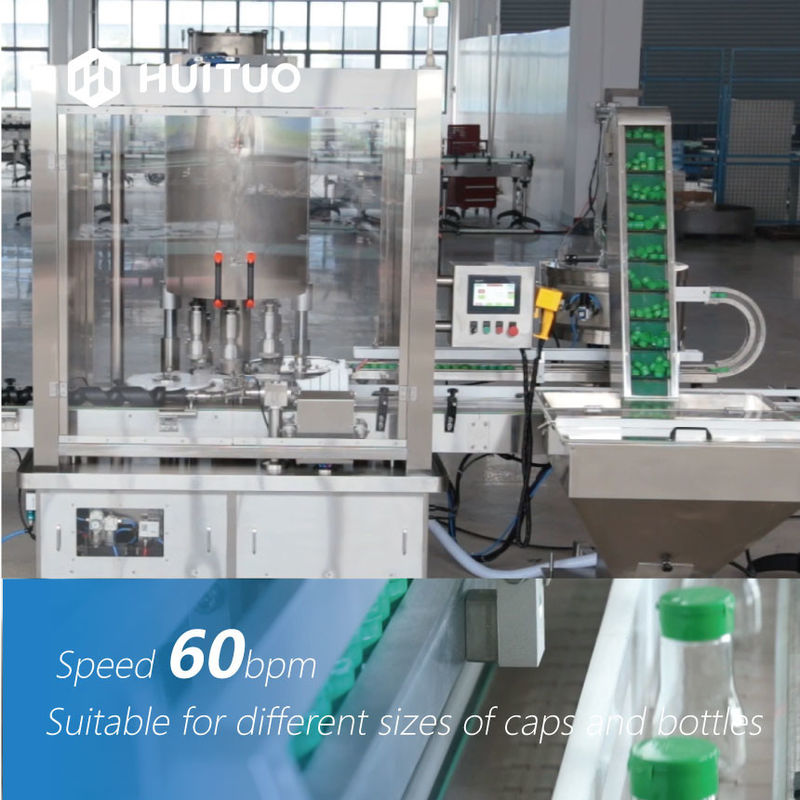

Glass bottle chilli sauce, ketchup, mayonnaise and chutneys capping machine
Highlights
- Siemens PLC and touch screen
- Fully automatic with cap sorter
- Easy connection to filling machine and labeling machine
- Production capacity can achieve 3,600bph with 6 heads, which can be custom-made based on customer requirements
- Gentle operation, no scratch and injury to caps and containers
- Quick changeovers
- Suitable for different sizes of caps and bottles
- Low running noise
Main parts description
1. Bottle-feeding
The screw drive follows the main drive, the screw angle can be set via touch screen to make it match with the star wheel. There is a sensor at the bottle-in screw, no bottle, no capping and release alarm when bottle-stuck.
2. Cap-feeding
It will choose belt for cap-feeding chain, drives by frequency conversion motor.
3. Cap-dividing
The cap divider is customized by the cap shape and different diameters would require changeover.
4. Capping
-Make non-relative motion between claws and caps
-Keep static station between claws and bottles during capping
-High-precious torque control system, a stable and reasonable torque value
5. Quick changeover
Made of PP, designed by bottle shape, with smooth surface.
It can not only stabilize the positioning, prevent the bottle from being scratched; and allows quick changeover.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
Want to Know more details about this product
