Rotary Capping Machine For Shampoo And Hair Conditioner
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SPM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 60bpm | Caps Suitable: | Lotion Pump, Flip-top, Pull-push, Yorker, Disc-top Etc. |
| High Light: | 60bpm Rotary Capping Machine,Shampoo Rotary Capping Machine,Hair Conditioner Filler Capper Machine |
||
Product Description

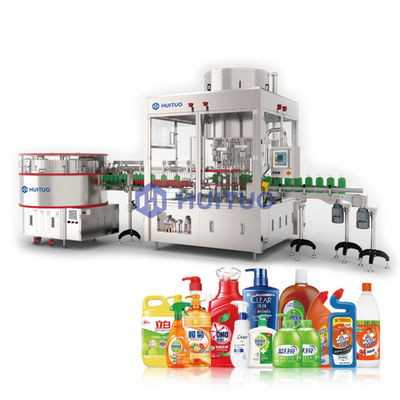

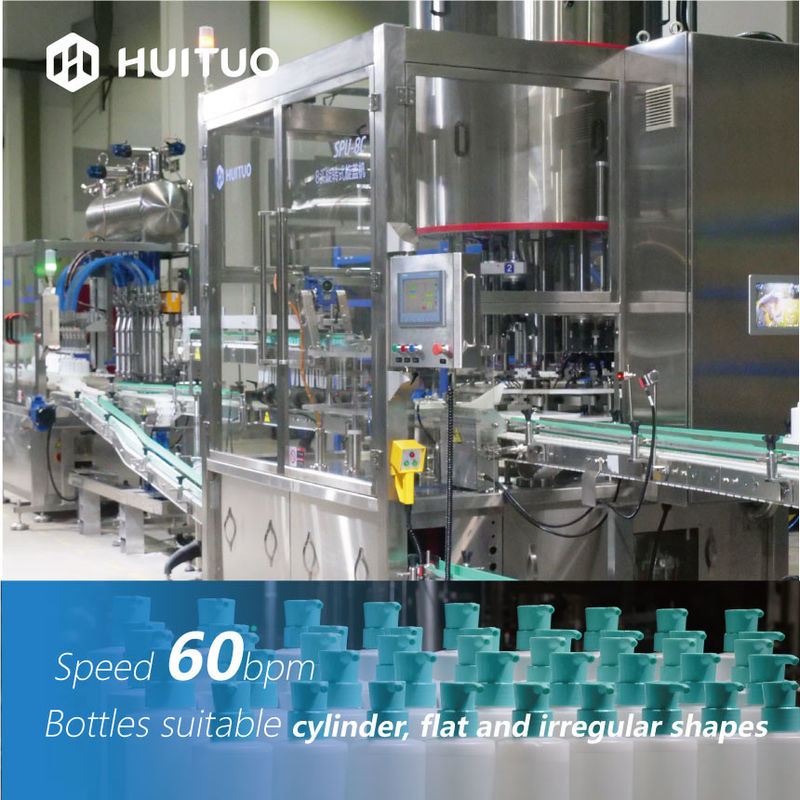

Rotary capping machine for shampoo and hair conditioner
Overview
8-head capping machine (it can be customized based on specific requirements)
Speed: 60bpm
Bottle volume: 300ml-1,000ml
Liquid: shampoo, hair conditioner
Bottles suitable: cylinder, flat and irregular shapes
Caps suitable: lotion pump, flip-top, pull-push, Yorker, disc-top etc.
Key parameters
| No. | Item | Description |
| 01 | Dimension | 2000mm*1800mm*2600mm |
| 02 | Capping head | 8, customized based on requirements |
| 03 | Stand-alone pass rate | 99% |
| 04 | Cap unscrambler φ | ≤1500mm |
| 05 | Torque control | 10-45 kgf.cm |
| 06 | Speed | 60bpm |
| 07 | Voltage | 220VAC~380VAC,50Hz |
| 08 | Power | 20kw |
| 09 | Air source | 0.6Mpa clean and stable air source |
| 10 | Noise | ≦80 decibels |
| 11 | Weight | 4,000kg |
| 12 | Material |
Frame: carbon steel cladding stainless steel frame; Capping head: Aluminium alloy Screen door: stainless steel edging, plexiglass; Electrical cabinet: stainless steel; Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |
Cap elevator and unscrambler
The cap is arranged by double-centrifugal principle, and it is output from the cap-feeding channel in order. Provide caps to the capping head via cap-divider.
- The speed of the unscrambler is automatically adjusted according to the elevator.
- The unscrambler is automatically controlled by the capper touch screen, without manual adjustment.
- For different caps, just change the inner guiding plate.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
