4 Head Servo Rotary Capping Machine 50bpm For Nuts And Peanuts
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SRU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 50bpm | Applicable Cap Type: | Round Cap |
| High Light: | 4 Head Servo Rotary Capping Machine,Rotary Capping Machine 50bpm,Nuts And Peanuts Filler Capper |
||
Product Description

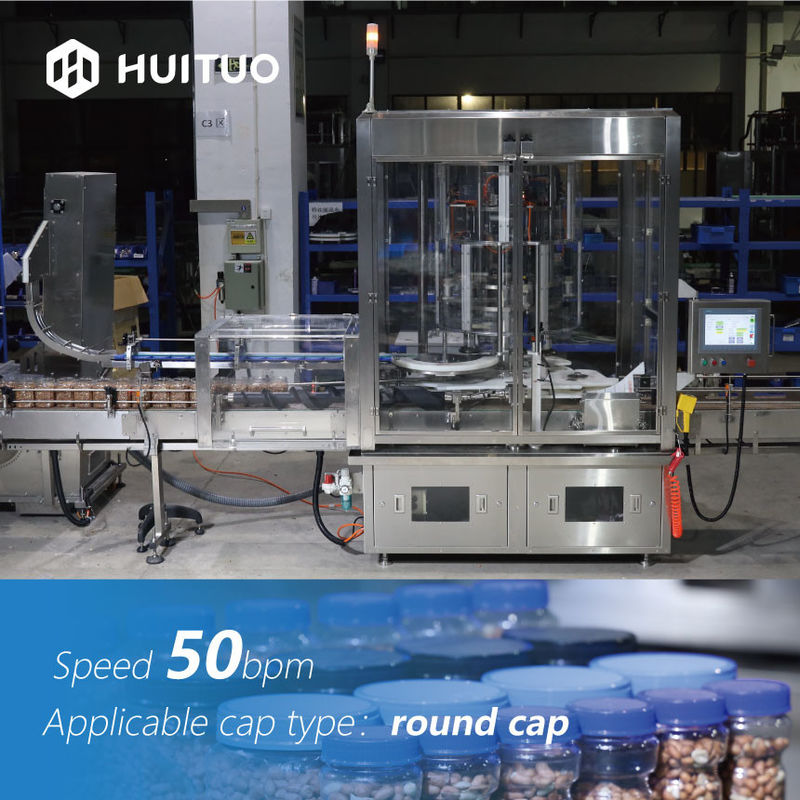

4-head servo rotary capping machine for nuts and peanuts, with 50bpm
SRU-4 is composed of several main parts, including bottle feeder + automatic cap elevator and unscrambler + bottle-in/out template + capping mechanism + rejection mechanism + electrical control etc.
Main technical parameters
| No. | Item | Description |
| 01 | Dimensions | 2000mm * 1600mm * 2600mm |
| 02 | Capping head | 4 heads (can be customized) |
| 03 | Stand-alone pass rate | 98% |
| 04 | Speed | 50bpm |
| 05 | Suitable bottles | Cylinder and flat |
| 06 | Voltage | 220V~380V, 50Hz, three-phase five-wire power supply |
| 07 | Total power | 5kw |
| 08 | Air source required | 0.6Mpa clean and stable air source |
| 09 | Running noise (decibel) | 80 decibels |
| 10 | Machine weight | 2.5 tons |
Main technical components
| No. | Parts | Brand |
| 1 | PLC | Siemens |
| 2 | Touch screen | Siemens |
| 3 | Intermediate relay | Schneider |
| 4 | Breaker | Schneider |
| 5 | Frequency converter | Danfoss |
| 6 | Button | Schneider |
| 7 | Alarm light | Schneider |
| 8 | Sensor | SICK/LEUZE/IFM |
Highlights

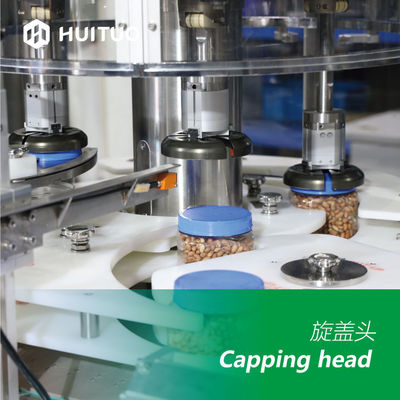

Each capping head is driven by an independent servo motor. During the capping process, the speed and torque of each capping head are determined by the program, which can be changed based on actual needs.
The capping servo motor is automatically and precisely controlled by the program, with closed-loop control, and torque error self-correcting caused by the inertia.
