Multifunctional 8 Head Rotary Capping Machine For Flip Top Pull Push Lotion Pump
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SPU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Capacity: | 70bpm | Applicable Bottle Capacity: | 600-1000ml |
| High Light: | Multifunctional 8 Head Rotary Capping Machine,Pull Push Lotion Pump Capping Machine,Flip Top Lotion Pump Capping Machine |
||
Product Description

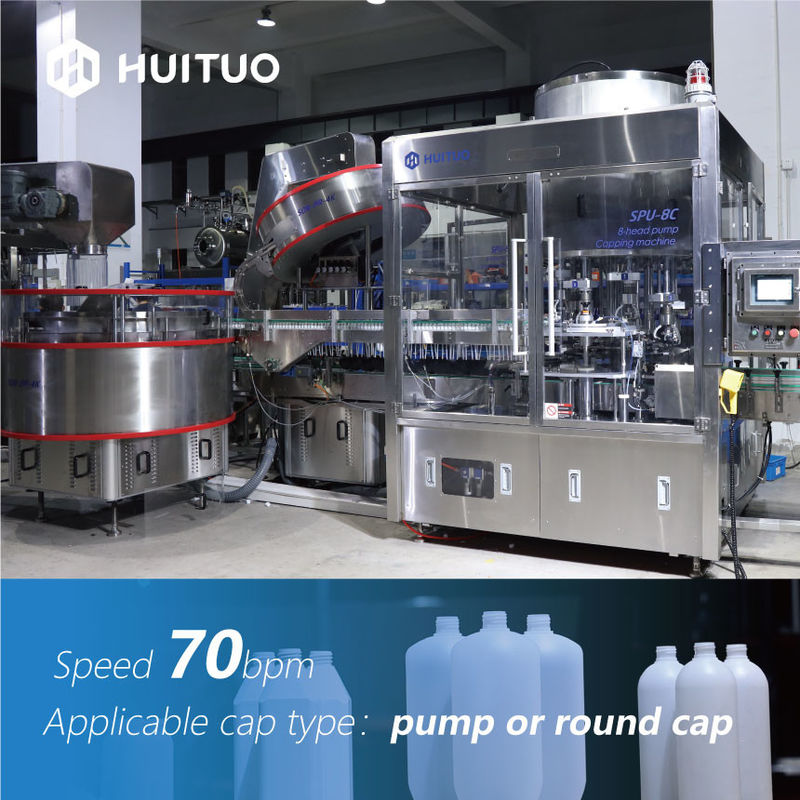

Huituo multifunctional 8-head rotary capping machine, suitable for lotion pump, flip top and pull-push
SPU-8C capping machine is a fully automatic capping machine after technological transformation. The machine sends the bottles to the screw rod by the conveyor belt, and the bottle is transferred to the capping machine by the bottle-in star wheel which is designed based on the bottle shape, and the cap is sent by the cap elevator, which is sorted out to the cap feeding channel in an orderly manner, and then transports them to the capping station. The tightened bottles will be sent out by the bottle-out star-wheel. This is the entire process of capping.
The equipment is advanced in technology, with protection alarm devices such as bottle blocking, bottle shortage, lack of cap, overload, etc., reliable performance, scientific process, food hygiene conditions which meet the national hygiene standards, high degree of production automation and easy operation. It is ideal and preferred capping equipment for manufacturer, suitable for varieties of packing lines.
Main technical parameters
| 1 | Applicable bottle | 5ml-5,000ml |
| 2 | Cap specifications | Customized |
| 3 | Number of caps | 8 |
| 4 | Speed | ≤4,200bph can be customized |
| 5 | Power supply | AC 380V/220V 50/60 Hz |
| 6 | Power | ≤10 kW(Cap elevator and unscrambler included) |
| 7 | Weight | About 4,000 kg |
| 8 | Dimensions | 1920 × 1790 × 2700 (L × W × H) mm |
Bottle-feeding by screw
The screw drive follows the main drive, the screw angle can be set via touch screen to make it match with the star wheel. There is a sensor at the bottle-in screw, no bottle, no capping and alarm when bottle-stuck.
Servo cap-feeding
SPU-8C adopts servo motor for cap-feeding chain. The servo motor has the advantages of periodic start and stop, periodic positive and negative rotation, not only reducing noise and avoid cap-stuck.
Cap-dividing
The cap divider is customized by the cap shape and different diameters would require changeover, but only the parts contacting cap needs to be changed.
Templates
Made of PP, designed by bottle shape, with smooth surface.
It can not only stabilize the positioning, prevent the bottle from being scratched; and allows quick changeover.

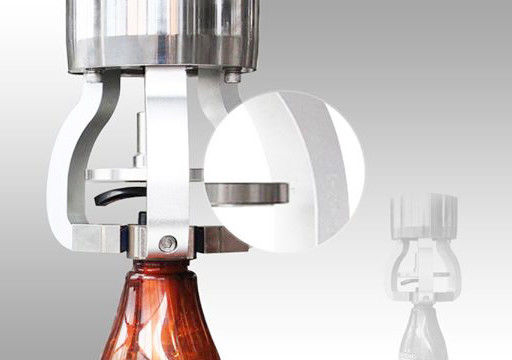

Bottle-fixing
It’s easy to slip for the cylinder bottle when capping, and the bottle is soft and easy to scratch. Therefore, the belt or bottle holder mechanism is adopted. The bottle holder is made of silica gel to prevent the bottle form from slipping and scratching.
Rejecting
Dual-conveyor with camera after capping
The qualified products are normally transported, and the unqualified ones (no cap, no inner tube, tilted cap-higher than normal 2mm) will be automatically split to another conveyor by swing cylinder.
Huituo office and factory
Since its foundation in 2010, Huituo focuses on the application, flexibility, changeover, and total cost of ownership. From individual machines to complete lines, Huituo can turn your application into reality. Our equipment is complemented by a comprehensive after-sales service portfolio that deals with the entire asset life cycle, from pre-sales to end-of-life support.
