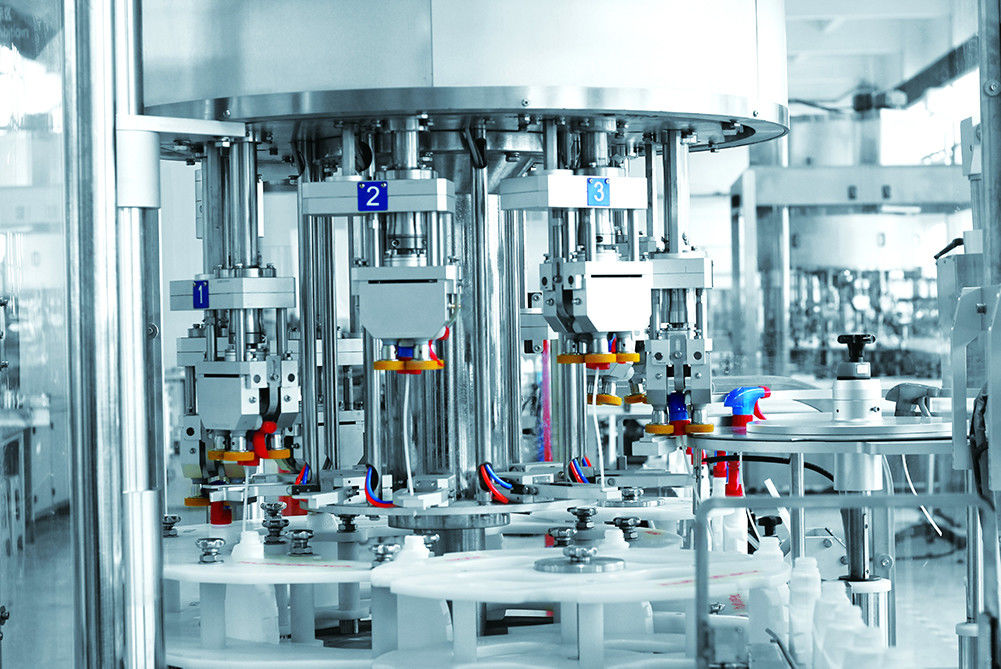

Touch Screen Control Daily Chemical Products Pump Capper
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Packaging Type: | Bottles |
|---|---|---|---|
| Packaging Material: | Glass, Plastic | Type: | Capping Machine |
| Condition: | New | Application: | Chemical, Daily Chemical |
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Voltage: | AC 380V; 50Hz | Dimension(L*W*H): | 2000mm*1600mm*2600mm |
| Weight: | 4500kg | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas |
| Capping Heads: | 4 Heads /8 Heads/12 Heads | Capacity: | 4000-8000bph(can Be Customized) |
| Port: | Shanghai | ||
| High Light: | daily chemical pump capping machine,touch screen bottle capper,four claws structure trigger capper |
||
Product Description
rotary Spray pump cap capper new products for wine bottle on china market 2019
Major Characteristics:
- PLC controlled , integrated cap sending ,grasping ,capping ( can affiliate with automatic cap - Four claws structure, obtained many patent on technology, suitable for pump caps, trigger caps with straw, duck mouth caps.
sorting machine)
- Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.
- Gentle manipulation, no scratch and injury to caps and containers
- Easy changeovers, one line capable of several products
- Connected with filling machine and labeling machine easily
- Module structure, manipulate on the touch screen, easy maintenances
- Suitable for containers made of PET/PP/PE/HDPE and so on
- Production capacity can achieve 4000-8000b/h, higher speed can be customized
- Applicable in detergent, shampoo, shower gel, hand cleaning gel, laundry detergent and many
other daily chemical products.
SP Daily Chemical Series
TRIGGER CAPPER
| Major Technical Parameters: | |
| Machine Dimension(L*W*H): 2m*1.6m*2.6m | Air operated source: 0.6Mpa clean and stable compressed air |
| Suitable caps : can be customized | Diameter of pump cap: can be customized |
| Power suply: AC 380V, 50Hz | Number of capping heads:4/8/12 |
| Length of pump cap: shorter than 250mm | Weight: 4500Kg |
| Machine power:4Kw(8 capping heads) | Torque control: around 0.3 Nm |
|
Model |
Num. of heads | production capacity |
| SP-4 | 4 | About 2000 BPH |
| SP-8 | 8 | About 5000 BPH |
| SP-12 | 12 | About 7200 BPH |
Packaging & Shipping:
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
(4) We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
About Us:
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic capping machine?
Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the longer delivery time.
