Automatic linear bottle liquid dosing volumetric filling machine filler for high viscous product
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SFLP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 30-90 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Packaging Type: | Bottles | Packaging Material: | Glass, Plastic |
|---|---|---|---|
| Type: | Piston, Flow Meter, Grviety | Application: | Chemical, Cosmetics, Food And Medical |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | AC 380V;50Hz | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | antiseptic liquid detergent filling machine,linear piston type hand sanitizer filler |
||
Product Description
Product Overview

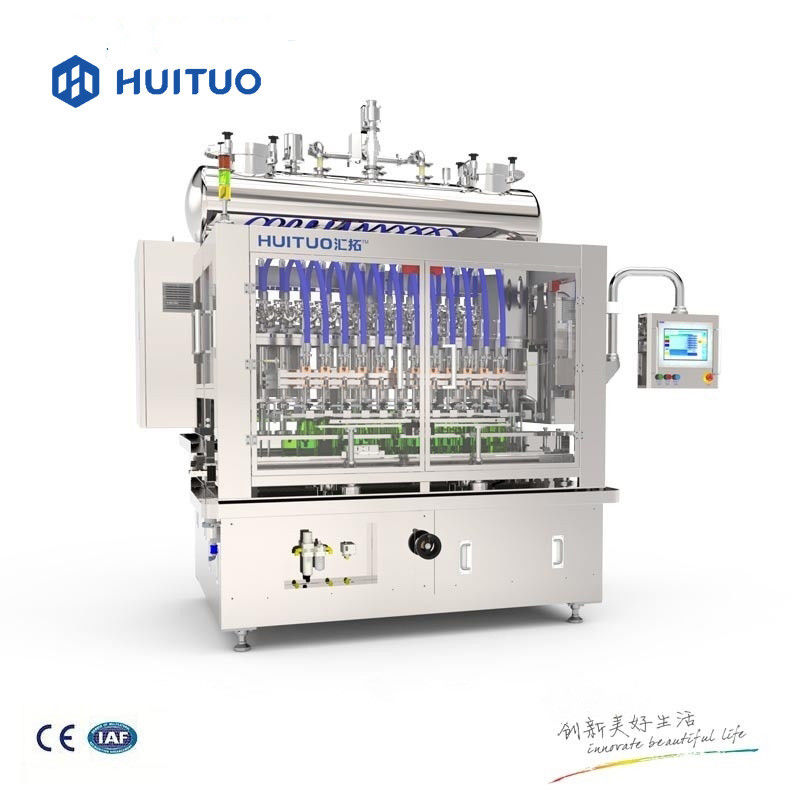

Huituo filling machine
Our SF series servo piston filling machine is suitable for filling materials with different viscosity. It has been widely used in chemical, food, medicine, and many other industries, featuring stable and reliable performance, high filling accuracy, convenient adjustment and so on.
FEATURES AT A GLANCE
Highlights
1. Wide application, suitable for different containers and liquids.
2. Filling range from 100ml to 5,000mland even more.
3. Bottle feeding: one row, two-row or three-row available, based on the capacity requirements.
4. Filling accuracy 0.3%-1%
5. Quick and easy changeover, automatic changeover is optional
6. Storage tank designed in GMP grade
7. Liquid contact parts meet the "FADCRF21" standard
8. (Pressurized) CIP and SIP available, cleaning time 5-10min
2. Filling range from 100ml to 5,000mland even more.
3. Bottle feeding: one row, two-row or three-row available, based on the capacity requirements.
4. Filling accuracy 0.3%-1%
5. Quick and easy changeover, automatic changeover is optional
6. Storage tank designed in GMP grade
7. Liquid contact parts meet the "FADCRF21" standard
8. (Pressurized) CIP and SIP available, cleaning time 5-10min
GMP storage tank
The tank contains the body, feeding pipe, cleaning pipe, cleaning ball, the liquid level detection sensor, and the mechanical safety valve etc. The liquid level sensor uses a guided wave radar and has a continuous liquid level detection function to fill at low level and stop at high level.
316L filling nozzle
Specially designed filling nozzle with high precision and long service life and can be dived into bottle bottom to fill. The servo motor drives the submerged filling mode of the filling head, which can switch the dive position according to different recipes, and the operation is more stable.
Bottle mouth fixing part
The bottle stopper uses a sliding stopper, which can be continuously adjusted for different bottle types. The slider uses a card slot structure, which is not easy to fall off on the slide conveyor. All fastening handles use quick-install handles, with no tools when adjusting.
Feeding hose
It adopts Italian imported brand conveying pipe, which conforms to food grade, smooth EPDM rubber, abrasion resistance, ozone resistance and aging resistance, and is sterilized at 110 degrees for 30 minutes.
PRODUCT SPECIFICATIONS
