1.5KW Single Head Screw Capping Machine

New products 2015 technology single head screw capping machine con

SP Daily Chemical Series

 Major Technical Parameters:

1. Number of capping heads: single
2. Machine Dimension(L*W*H): 2m*1m*1.78m
3. Suitable caps : normal round cap; pump cap; trigger cap(the capping heads are different)
4. Power suply: AC 380V;50Hz or AC 220V;50Hz
5. Length of cap: shorter than 250mm(for pump cap and trigger cap)
6. Air operated source: 0.6Mpa clean and stable compressed air
7. Diameter of cap: can be customized
8. production capacity: ≤2500 bottles/hour
9. Weight: 580Kg
10. Machine power:1.5Kw

 Major Characteristics:

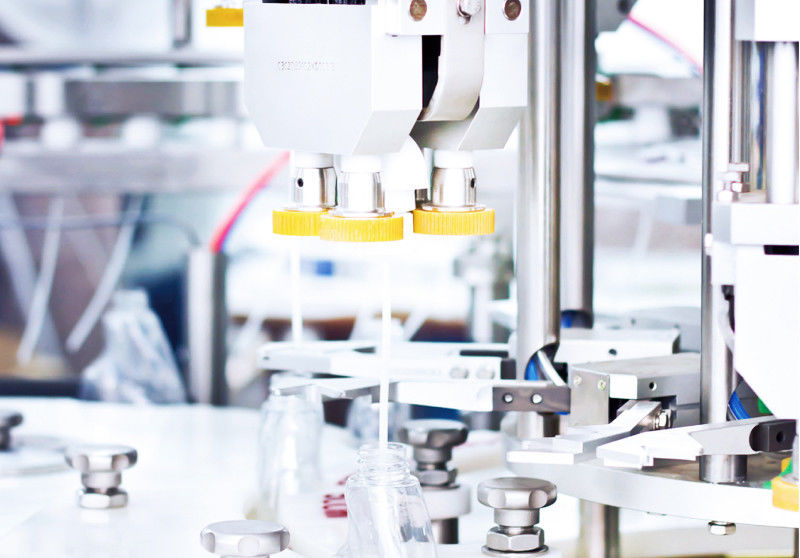

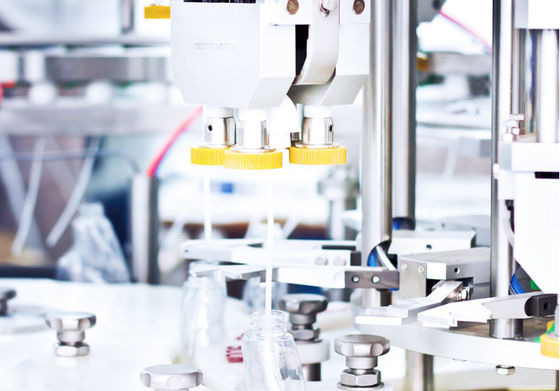

1.  One manipulator, which can be designed into three claws structure or four claws structure according cap types.
2. Cap supplying system and the manipulator works at the same step.
3. Adjustable torque control. (When caps capped well , the bottes and the caps are relative static ,the clutch releases.)
4. The surface of machine is made of high quality stainless steel .
5. Tthe eletrcial elements use international famous brand .
6. Suitable for containers made of PET/PP/PE/HDPE and so on.
7. Applicable in detergent, shampoo, drink etc.

Application:






FAQs

1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.

2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm

2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm

3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm


3. What's the difference between semi-automatic and automatic capping machine?
Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.

4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.

5. Should I choose linear filling machine or rotary filling machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.

6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.

7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.

8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.

9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the longer delivery time.
