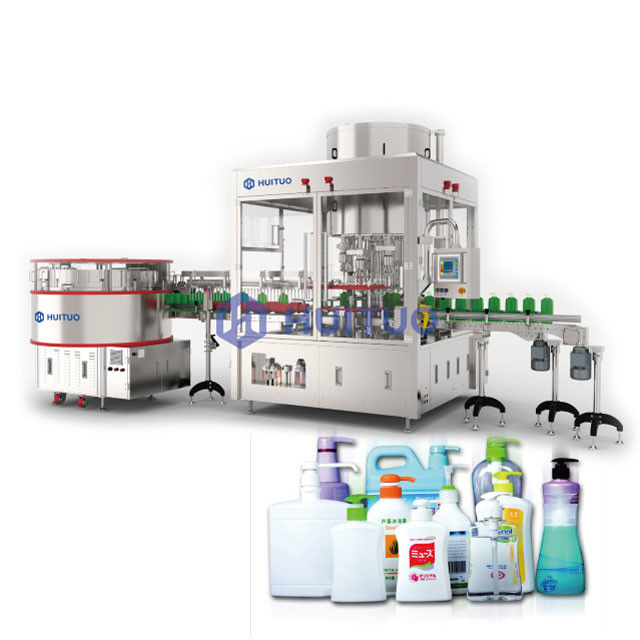

Automatic Bottle Capping Machine 20-100bpm For Lotion Pump Caps
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
| Model Number: | SPU-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Voltage: | 220V/380V,Customer's Requirement,380V/50Hz | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Applicable Materials: | Dishwashing Liquid,laundry Detergent |
| Speed: | 20-100bpm | Bottle Volume: | 100-1500ml |
| High Light: | 100bpm Automatic Bottle Capping Machine,Lotion Pump Cap Capping Machine |
||
Product Description
Automatic Bottle Spray Trigger Nozzle Capper Capping Machine
Features
1. Bottle volume: 100ml-1,500ml
2. Speed: 20-100bpm (can be customized based on specific requirements)
3. Bottles suitable: cylinder, flat and irregular shapes
4. Caps suitable: lotion pump, flip-top, pull-push, Yorker, disc-top etc.
5. Siemens system
6. Gentle operation, no scratch and injury to caps and containers
7. Quick changeovers
8. Module structure, easy maintenance
9. Easy connected to filling machine and labeling machine
10. Low running noise

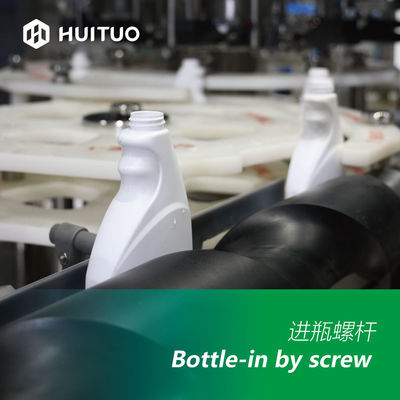

Bottle-feeding by screw
The bottle-in screw is processed by contour design, with precise and fast bottle feeding, no damage to bottle.

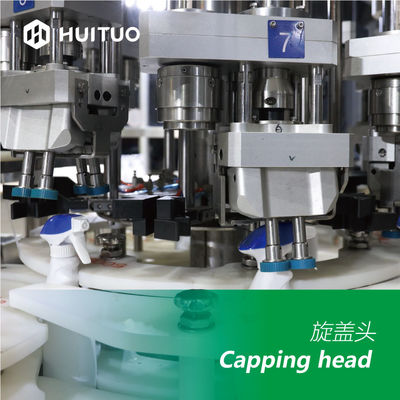

Capping head
wheel design, make non-relative motion between wheels and caps; high-precious torque control system, a stable and reasonable torque value

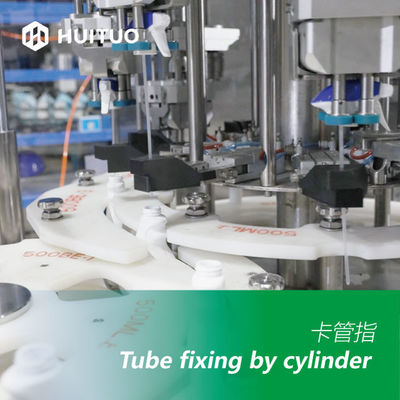

Tube fixing by cylinder
The capping head takes caps, while the tube-fixing cylinder is stuck on the upper end of the tube near the piston where the cap is straight here. With the capping head lifting, the tube is straightened and run to 5-10mm above the bottle mouth, to make sure the tube is inserted into bottle correctly.

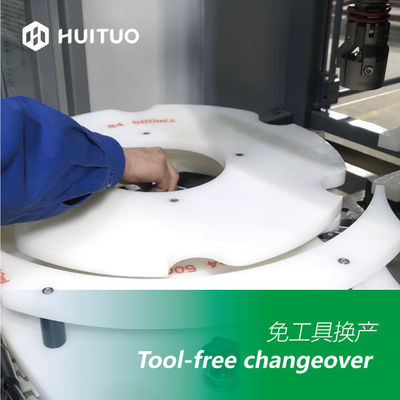

Tool-free changeover
For different specifications of products, it adopts quick-release design, including the bottle-in star wheel, bottle-out star wheel, bottle-taking star wheel, bottle in-and-out guide plate, and outer retaining ring. The templates are color-coded to distinguish between different specifications.

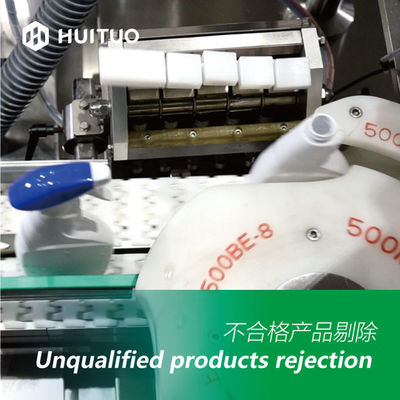

Rejecting of unqualified product
A double-conveyor belt structure with an intelligent detection sensor at the exit. The qualified bottles are normally conveyed, and the unqualified (no inner tube and no cap) bottles are automatically diverted to another conveyor belt by using a swing cylinder. When bottle block appears, the capping machine will automatically stop and it will start again when the problem solved.
