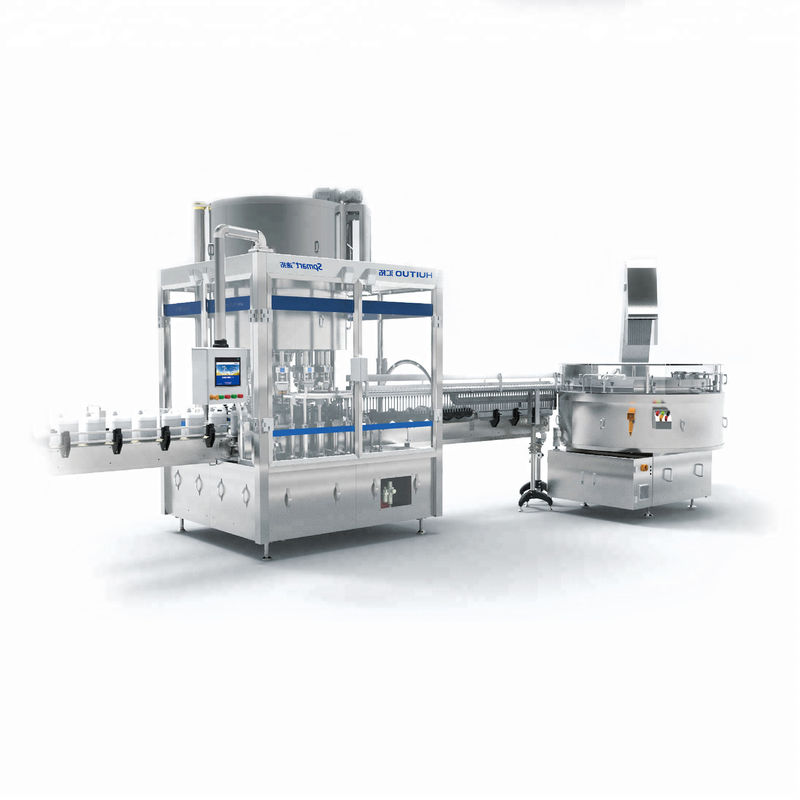

Liquid Detergent Plastic Bottle Capping Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HUITUO |
| Certification: | CE,ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-60 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30set/month |
|
Detail Information |
|||
| Application: | Chemical, Commodity, Medical, Food, Daily Chemical | Speed: | 600-18000bph |
|---|---|---|---|
| Warranty: | 1 YEAR | Packaging Type: | Cartons |
| Parts: | World-known Brand | Packaging Material: | Wood |
| Type: | Capping Machine | Applicable Industries: | Hotels, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Indonesia, Sri Lanka, Bangladesh |
| Showroom Location: | None | Condition: | New |
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Voltage: | AC380V;50Hz | Dimension(L*W*H): | 2000mm X 1000mm X 1780mm |
| Weight: | 3000KG | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Key Selling Points: | Easy To Operate | Capping Head: | 1-20 |
| Port: | Shanghai | ||
| Highlight: | module structure screw capper machine,touch screen bottle capper machine |
||
Product Description
China supplier automatic PET plastic bottle hand and dish wash liquid. detergent capping machine
Liquid capping machine
Major characteristics:
(1) This capping machine has one manipulator ,dispatches caps in high speed with no reverse caps which can be suitable for various types of bottles.
(2) The cap supplying system and the manipulator works at the same step. When caps capped well , the bottes and the caps are relative static ,the clutch releases ,this can avoid bottles getting injured to achieve high qualified rate of capping.
(3) The surface of machine is made of high quality stainless steel ,the eletrcial elements use international famous brand which makes machine more stable ,good-looking meets GMP standard.
Main technical parameter:
|
No. |
Items |
Performance |
|
1 |
Power supply |
220V;50Hz |
|
2 |
Power |
1.5Kw |
|
3 |
Pneumatic (air-operated) source |
0.6 Mpa clean and stable compressed air |
|
4 |
Suitable bottles |
diameter: Φ40mm~Φ100mm; height : 60mm~230mm |
|
5 |
Suitable caps |
diameter of caps: Φ20mm~Φ70mm; height of caps: Φ15mm~Φ30mm (can be customized) |
|
6 |
Production capacity |
≤2500bottles/hour |
|
7 |
Machine weight |
about 580Kg |
|
8 |
Dimension (L*W*H) |
2000mm*1000mm*1780mm |
Packaging & Shipping:
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets,accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
About Us
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic capping machine?
Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the longer delivery time.
