Huituo Compact Multifunctional 2 In 1 Edible Oil Filling Capping Machine 1500bph

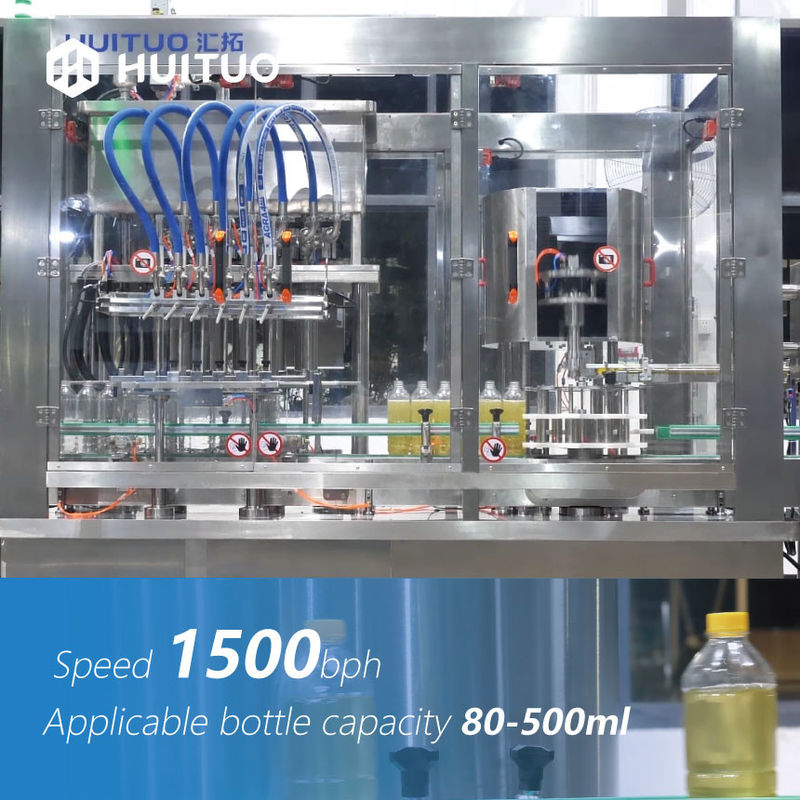

Huituo compact and multifunctional 2-in-1edible oil filling capping machine with the speed of 1,500bph

The 2-in-1 can be used for filling and capping of various non-gas liquids and viscous liquids. A series of operations such as counting into bottles, filling, capping and conveying out bottles are completed automatically. It can be widely used in various industries such as daily chemical, food, medicine, oil, etc. It can be matched with bottle washing machine, labeling machine, etc. to form an assembly line.

The equipment is advanced in technology, with protection alarm devices such as bottle blocking, bottle shortage, lack of cap, overload, etc., reliable performance, scientific process, food hygiene conditions which meet the national hygiene standards, high degree of production automation and easy operation.

This machine is mainly composed of control system, conveying device, photoelectric detection, feeding device, storage tank, liquid level control device, filling device, diving device, bottle holding device, bottle blocking device, capping head, cap-sending channel and other parts.

Filling process

The transmission system drives the piston of the filling device to move downwards and suck the material in the storage box into the metering cylinder. At this time, the filling control valve rotates to close the feed channel and open the discharge channel. At the same time, the plugging control valve opens. Then the transmission system reversely drives the piston of the filling device to move upwards, and injects the material in the metering cylinder into the discharge pipe, and fills the container into the container through the discharge nozzle.

The servo motor drives the diving device to quickly reach the bottom of the bottle, so that the filling head is inserted into the bottle to the specified position. At this time, the filling control valve is opened for filling, and the filling is raised while filling, and the filling head is slowly raised to the specified position. Lift the mouth of the bottle and the filling process is now completed.

The filling nozzle is specialized designed with to prevent drop / spill.

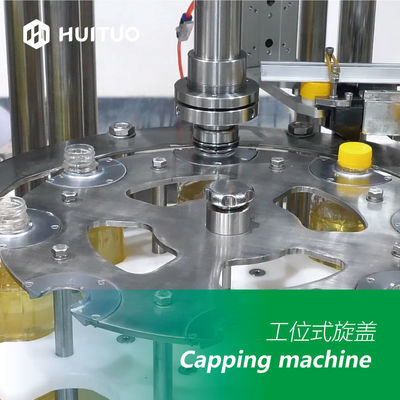

After filling, the bottles enter to the capping parts. First, the bottles will enter the station plate one by one. The station plate rotates the bottles under the capping head, and the capping head descends and rotates under the action of the mechanical cam to complete capping within a certain period of time. After completion, the capping head rises and the station plate sends the bottles out.
